5.15 Lower Oven Cooling Fan (Double Oven) -
Removal
1. Remove the Front Doors (Section 5.2).
2. Remove the oven (Section 5.5).
3. Remove the Lower Back Panel (Section 5.10)
4. Refer to Figure 5-8. Unplug the electrical connections to the
Cooling Fan (Item1).
5. Remove the Vent Strip Fastening Screws (Items 2 & 3).
6. Remove Vent Strip(s) – as necessary.
7. Remove the Cooling Fan Fastening Screws.
8. Remove the Cooling Fan.
1. Upper Cooling Fan
2. Vent Strip
3. Vent Strip

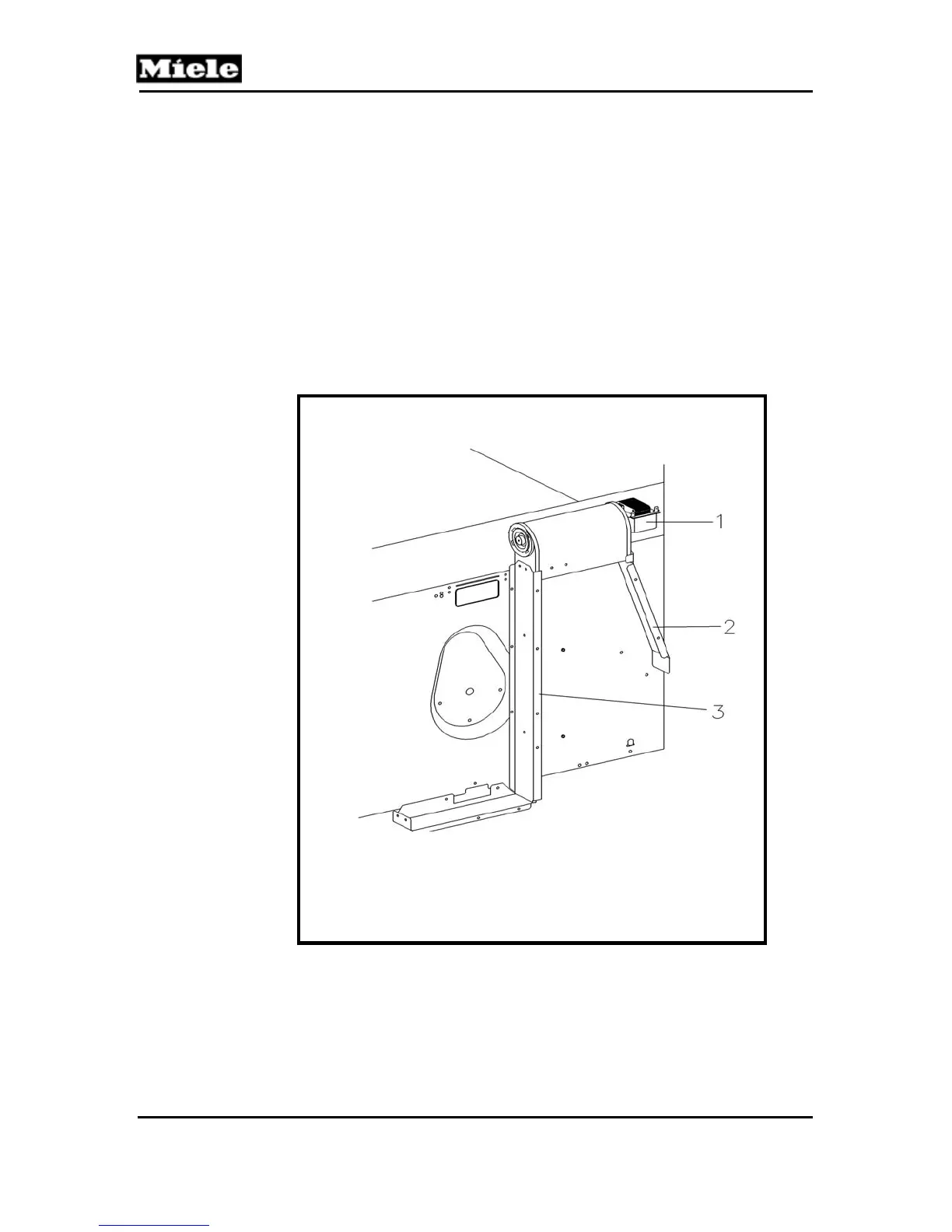

Figure 5-8: Lower Oven Cooling Fan - Removal
