Miele H397B2 User Manual

Technical Information
9
Master Chef Ovens
1.5 Components Overview
1.5.1 Component Overview – Single Oven, w/o Master Chef Menu
1 (1F1) Hi-Limit Cutoff
2 (1N1) Electronic Unit
3 (2T1) Light Transformer
4 (1R30) Upper Oven Temperature Sensor
5 (1M2) Convection Fan
6 (R14) Convection Heating Element
7 (R12) Lower Heating Element
8 (X3/1) Terminal Block
9 (1M/1) Oven Cooling Fan
10 (S1) Child Safety Switch
11 (Z2) Interference Suppression Capacitor
12 (1T1) Transformer
13 (1K1) Oven Relay
14 (S24) Door Switch
15 (1A1, 2A1) Display Electronic
16 (R15) Broiler Element
17 (R13) Upper Heating Element
18 Halogen Bulb
19 (1H3/1 & 2H3/1) Light Assembly (1 per side)

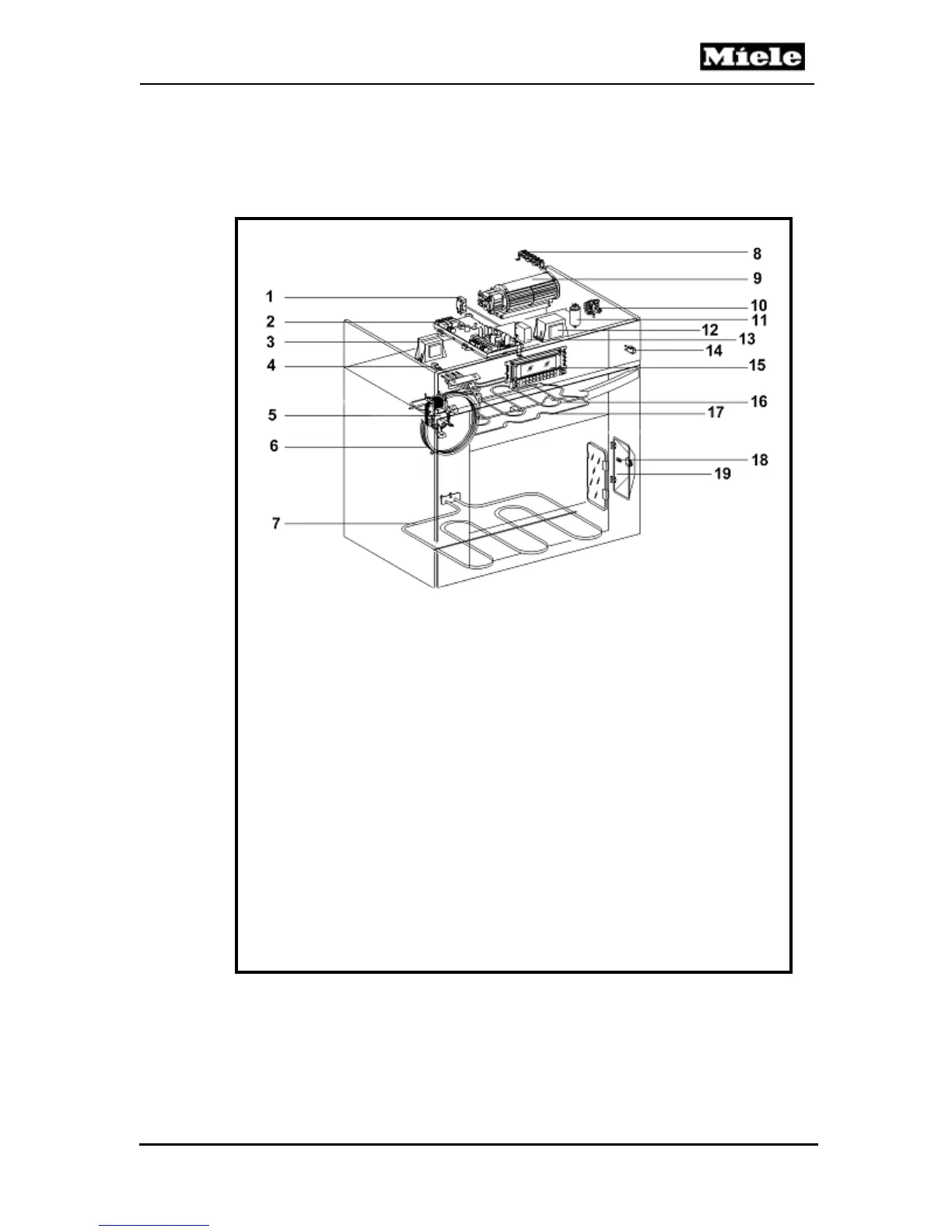

Figure 1-7: Component Overview – Single Oven without Master Chef Menu
