Technical Information
55
Master Chef Ovens
1. Interior Glass Pane
2. Holding Bracket
5.31 Front Door, Middle Glass Pane – Removal
1. Remove the Front Door (Section 5.2)
2. Remove the Front Door Outer Glass Pane (Section 5.30)
3. Refer to Figure 5-23.
4. Remove the Retaining Bracket Screws (Item 2).
5. Remove Retaining Bracket.
6. Remove Middle Glass Pane from the Door Frame (Item 1).

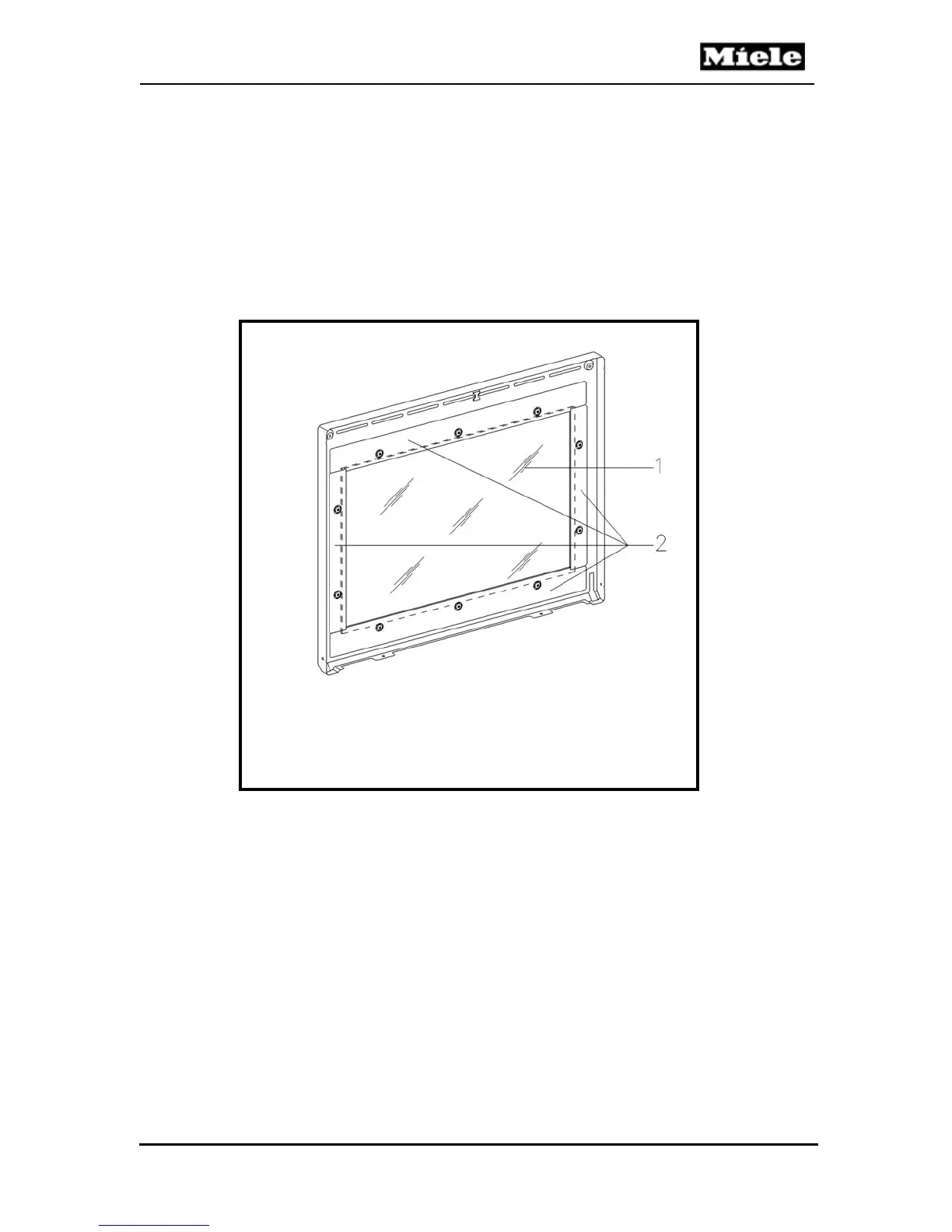

Figure 5-23: Front Door Middle Glass Panel - Removal
