Technical Information
23
Master Chef Ovens
4.0 Description of Function
1. Opening between Housing and Upper Holding Plate Insulation Mat
2. Opening between Outer and Interior Glass Pane
3. Opening below the Door
4. Opening between Vent Strip and Bottom Plate
5. Opening between Bottom Plate and Lower Insulation Mat
6. Convection Fan
7. Air Duct
8. Vapor Outlet (H398BP2 Only)
9. Cooling Fan
10. Exhaust Duct

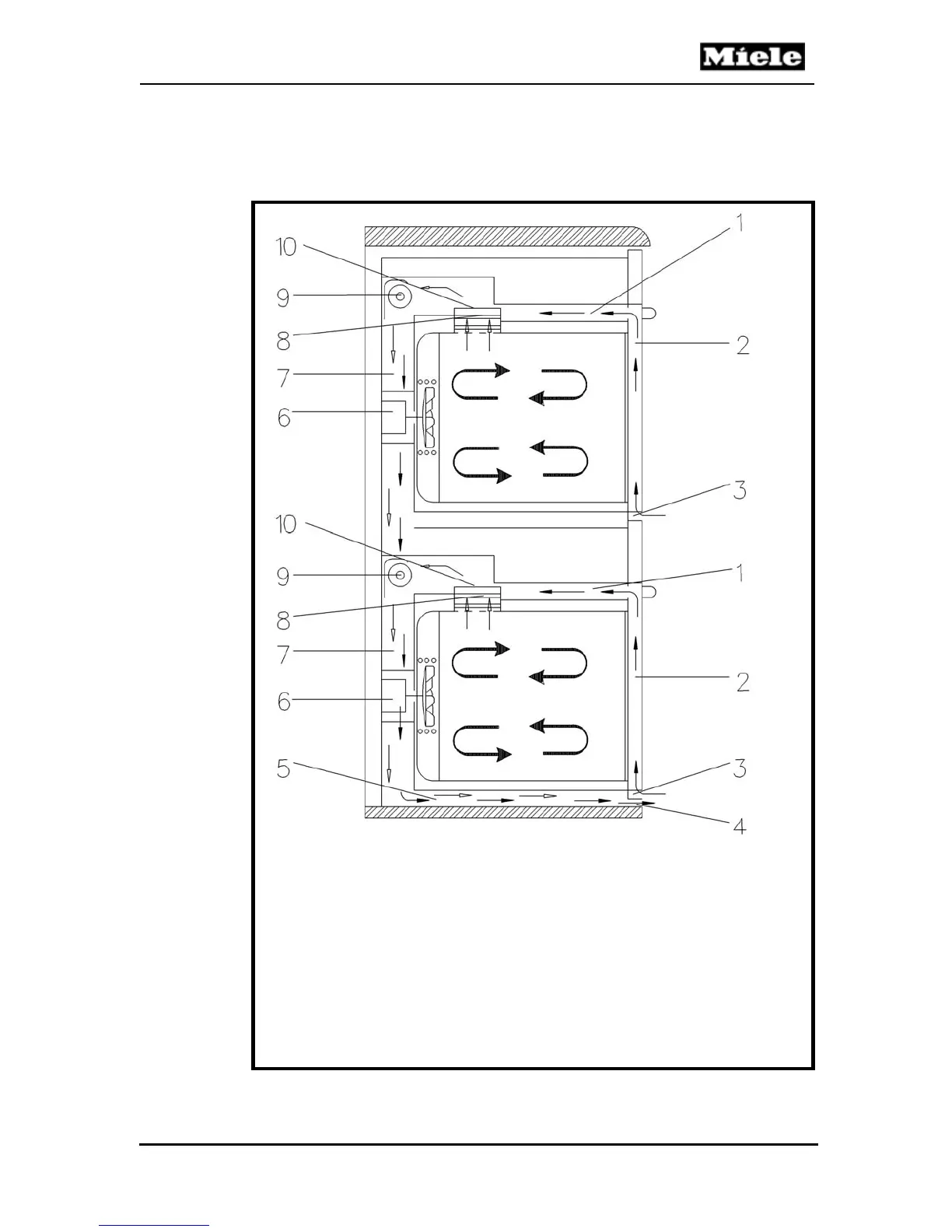

Figure 4-1: Airflow Paths (Double Oven Shown)
