Technical Information
48
Master Chef Ovens
5.22 Top Heater/Broiler Heating Element
(1R13/1R15, 2R13/2R15) - Removal
1. Refer to Figure 5-16.
2. Remove the Heater Element Retaining Screws (Item 1).
3. Remove the Thumb Screw (Item 2).

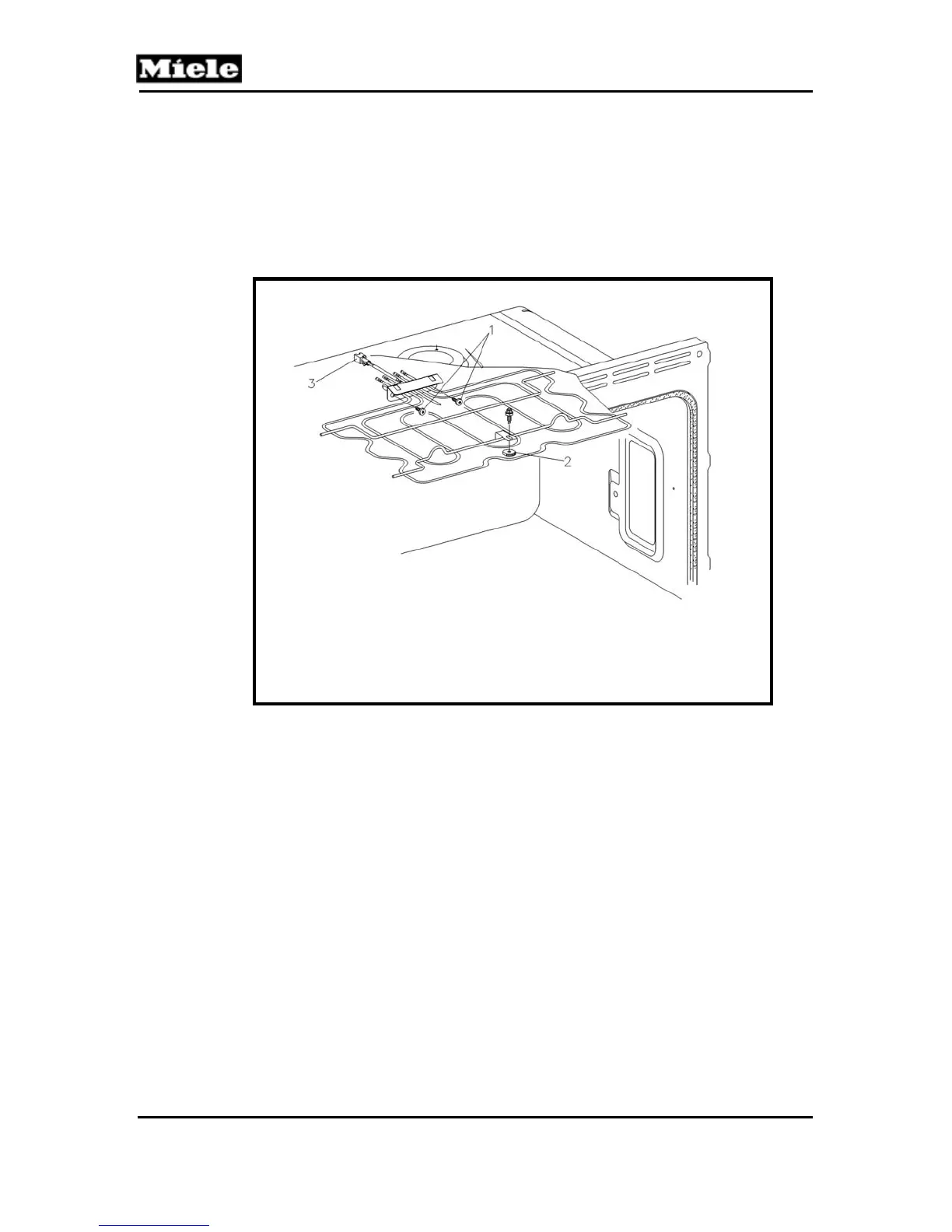

Figure 5-16: Top Heating Element
4.
Gently lift the mounting flange upward and move it toward the front of
the oven.
5. Disconnect the Temperature Sensor Connection (Item 3).
6. Remove the Temperature Sensor.
7. Disconnect the Heater Element connections.
8. Remove the Heater Element.
1. Top Heating Element Retaining Screws
2. Thumb Screw
3. Temperature Sensor Connection
