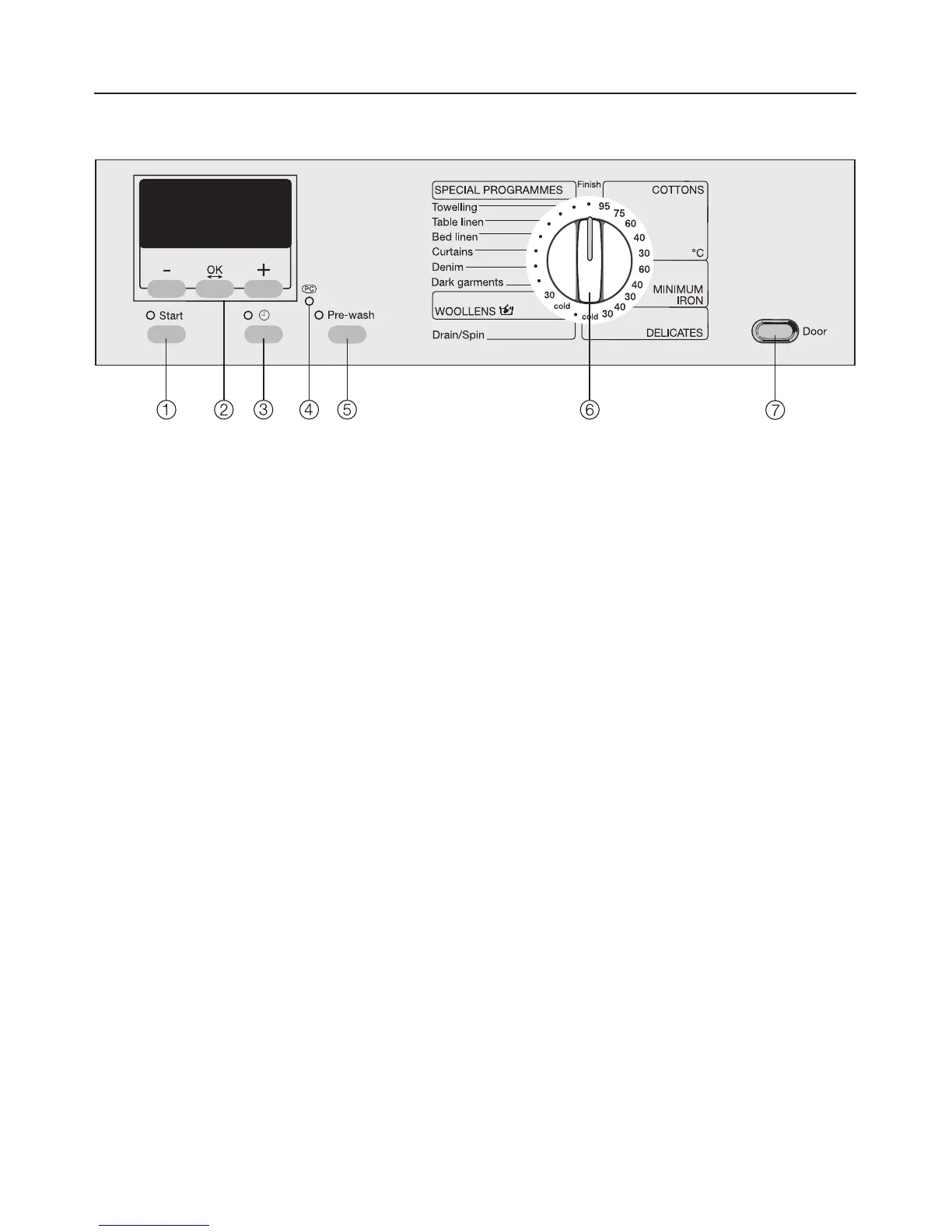

Control panel
a "Start" button, with indicator
starts the selected wash program.
b Display with –, "OK" and + buttons
allows more info to be seen on the
following screens.
c m Delay Start button, with indicator
d PC Indicator/Optical interface
allows a service technician to check
and update the wash programs
e Pre-wash button, with indicator
f Program selector
to select a wash program.
The program selector can be turned
clockwise or counterclockwise.
g "Door" button
to open the drum door.
Guide to the washer
6
