Installation and connection
75

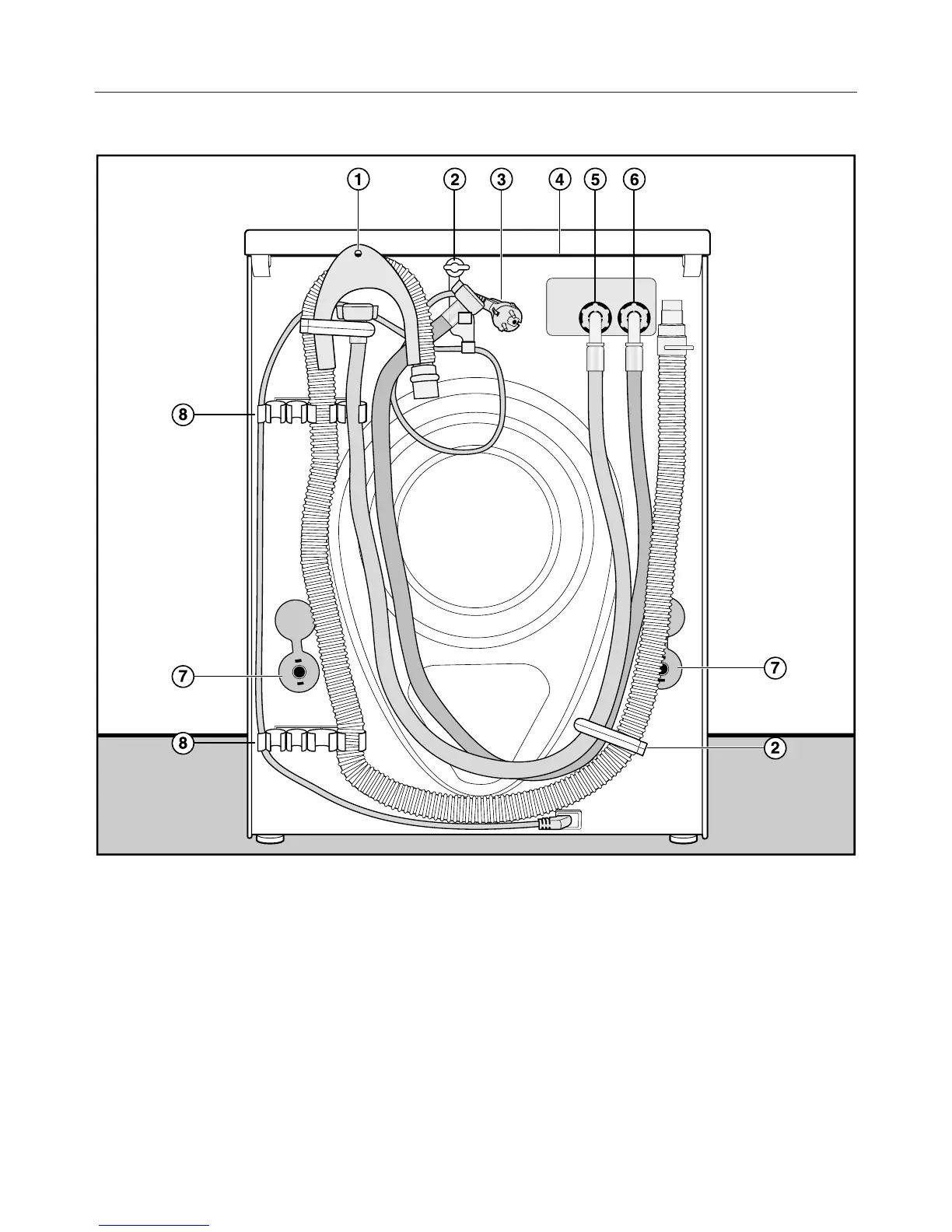

Rear view
a
Drain hose
b
Transport clips for electrical connec‐
tion cable, inlet and drain hoses
c
Electrical connection cable
d
Protruding lid for holding when mov‐
ing the machine
e
Inlet hose (tested to withstand pres‐
sures up to 7000 kPa) for cold mains
water
f
Inlet hose (tested to withstand pres‐
sures up to 7000 kPa) for hot mains
water
g
Safety caps for transit bars
h
Transport clips for inlet and drain ho‐
ses and for storing transit bars when
not in use
