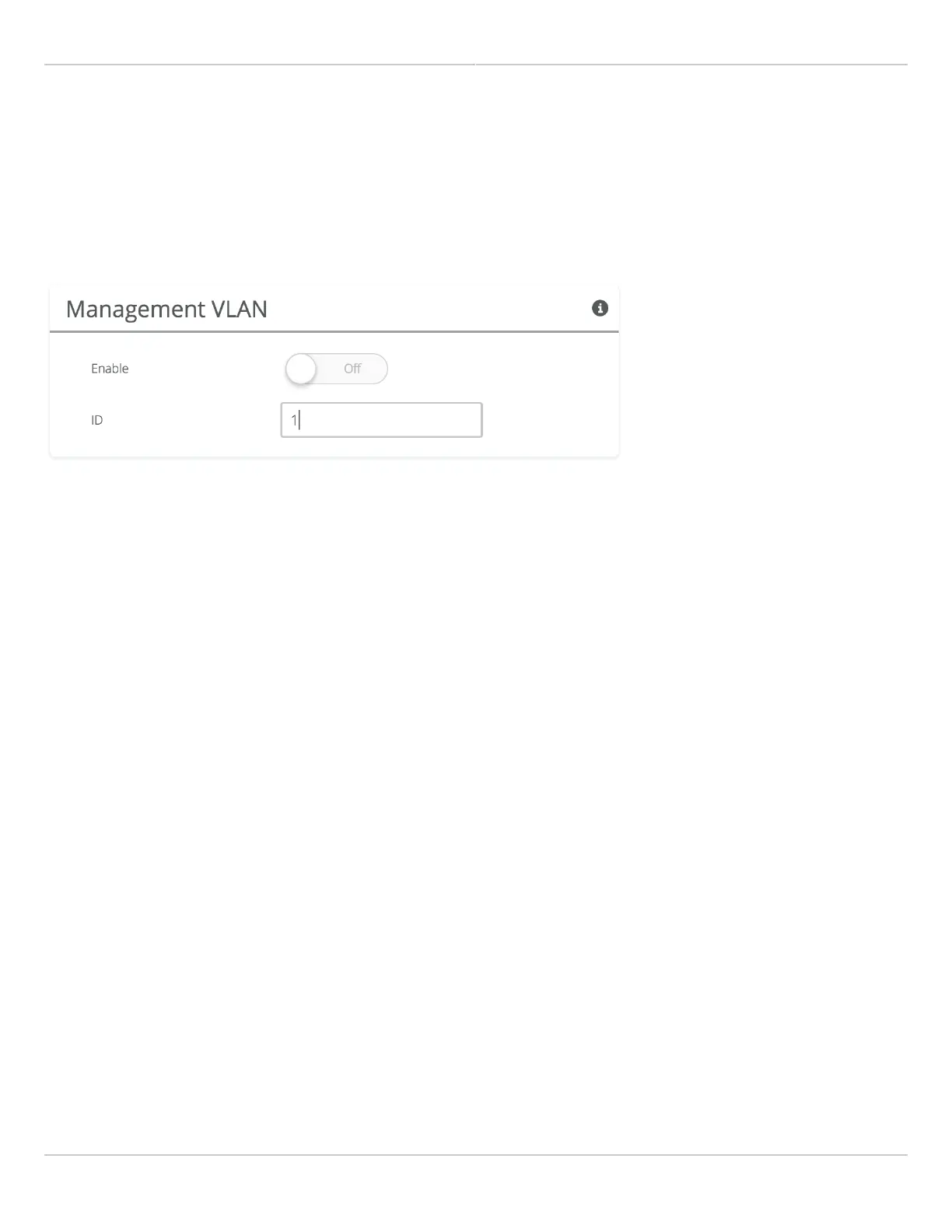

Page 63
VLAN Management
The VLAN Management panel allows the administrator to enable a VLAN (Virtual Local Area Network) for
management traffic. When enabled, all Web Management traffic must originate from a device on that VLAN.
Enable
- Use the slider control to turn VLAN Management on or off.
●
ID
- The VLAN ID tag.
●
66
68
Table of Contents
Table of Contents
2
Faq's
5
Setup
5
Default IP Address
5
Reset Process
7
Reset C5/C5C
7
Serial Number Location
10
Performance
12
SNR Required for each MCS
12
Error Vector Magnitude (EVM)
13
Quality of Service (Qos)
14
Receiver Sensitivity
16
Hardware & Materials
17
Specifications
18
Power over Ethernet (Poe)
18
Installation Guide
20
Installation Overview
20
Mounting & Grounding
21
C5 Mounting and Grounding
21
C5C Mounting and Grounding
26
NID Details
30
Power & Data Connections
33
Poe Connections
33
Client Setup
36
User Guide
37
Overview
37
General
37
Accessing the Interface
38
Logging in
39
User Interface Overview
40
Dashboard
42
Dashboard Overview
42
Signal Meter
43
Performance
44
Device Details
45
MIMO Status
47
Wireless
50
Channel & Power
50
Spectrum Analyzer
50
Channel & Power Settings
51
Link
52
Device Configuration
52
Rate Limit
53
Link Configuration
54
Location
56
Local Coordinates
56
Remote Coordinates
57
Distance
58
Site Survey
59
Survey Results
59
Preferences
60
General
60
Naming
60
Time
61
Set Password
62
Miscellaneous
63
Management IP
64
Watchdog
65
Services
66
Management
67
Management VLAN
67
Miscellaneous
68
Notifications
69
SNMP Notifications
69
SNMP Traps
70
System Log Notifications
72
System Log Traps
73
Firmware & Reset
74
Firmware Update
74
Reset & Reboot
75
Backup & Restore
76
Diagnostics
77
Tests
77
Tests
78
Ping
78
Traceroute
79
Logs
80
Log Overview
80
SNMP Interface
81
SNMP OID Reference Tables
81
Troubleshooting Guide
86
Overview
86
LED Status
87
Ethernet Speed
89
