Mitsubishi Electric A172SHCPUN User Manual

APPENDICES
APP
−
17

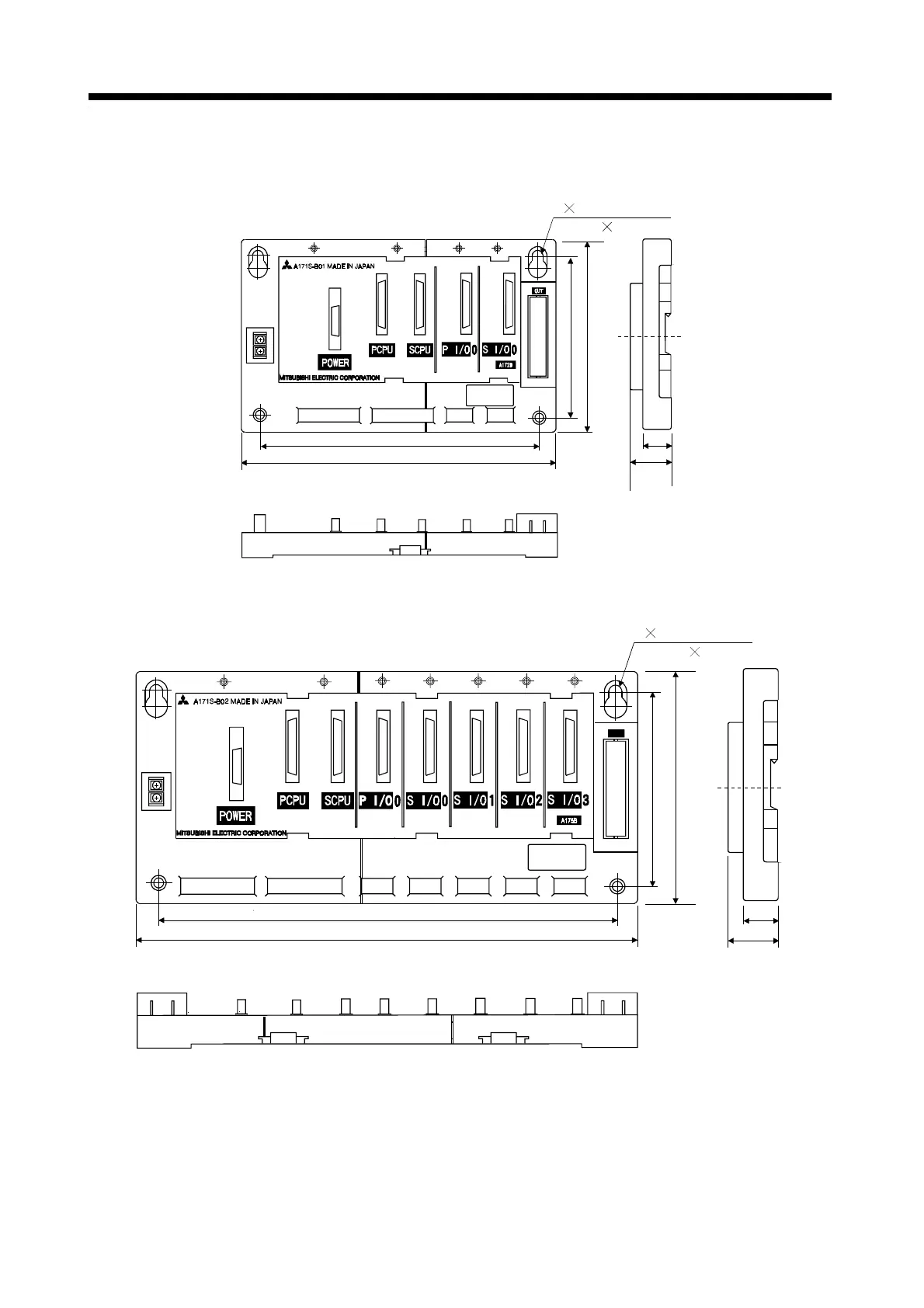

Appendix 2.3 Main Base Unit
(1) A172B main base unit
200(7.87)
220(8.66)
110(4.33) 130(5.12)
16.4
(0.65)
28
(1.1)
4 mounting screws
(M5 25)
Unit = mm(inch)
(2) A175B main base unit
OUT
4 mounting screws
(M5 25)
305(12.02)
325(12.81)
28
16.4
110(4.33) 130(5.12)
(0.65)
(1.1)
Unit = mm(inch)
