1. SPECIFICATIONS OF MOTION SYSTEM COMPONENTS
1
−
49

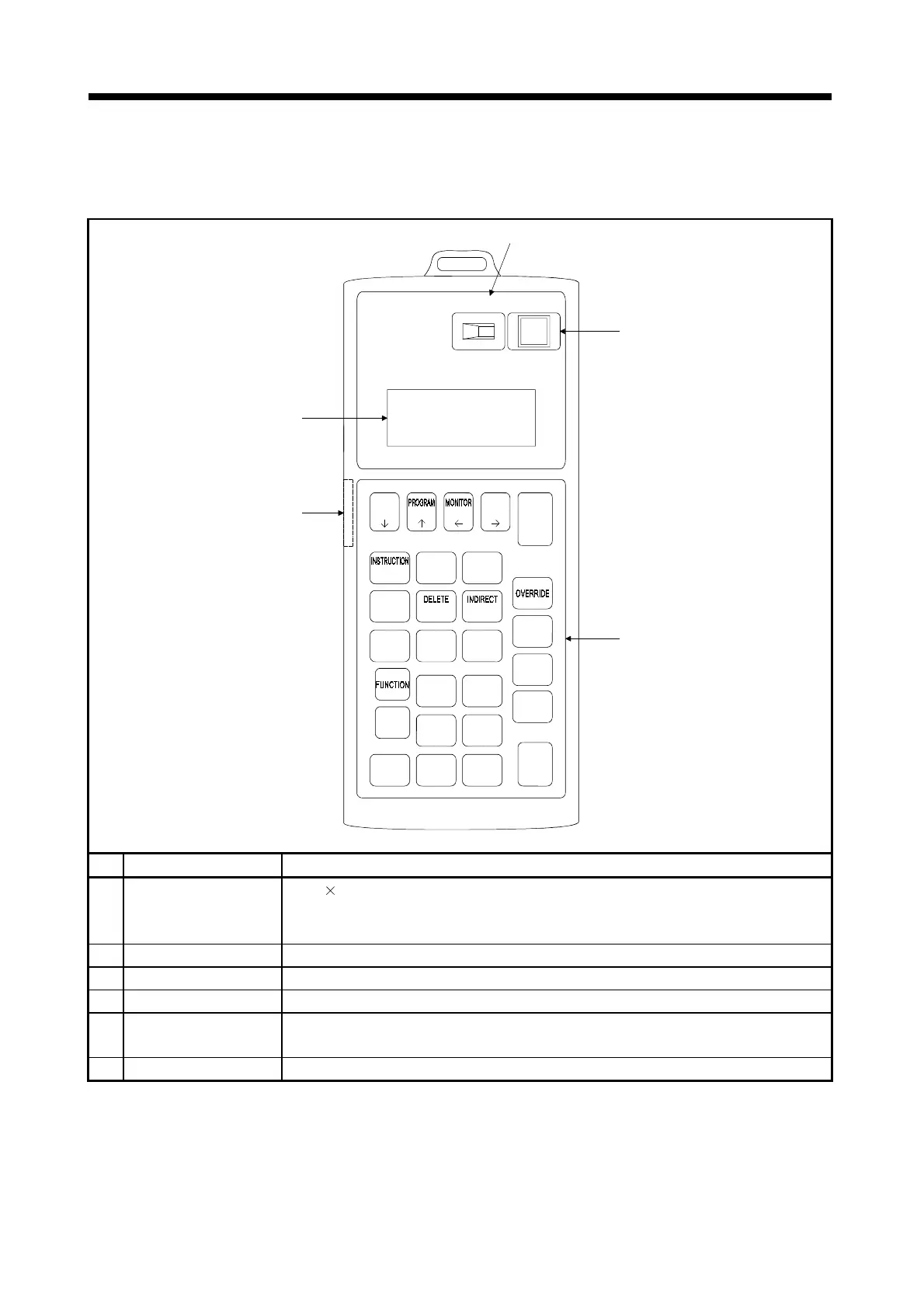

1.5.5 Teaching Unit
(1) Names of parts
(a) A30TU-E
MITSUBISHI
A30TU-E
1)
2
)
3)
4
)
6)
Invalid
Valid
A30TU-E SV13 Ve
*Data *Monitor
*PROG *Test
Press the mode key.
DATA
TEST
STOP
STEP-
STEP+
RETURN
ERROR
RESET
Emergency
Stop
GO
SHIFT
CAN
AXIS
NO.
JOG - JOG +
ITEM
#
8
CLEAR
SP
79
:
E
5
F
4
6
D
B
2
C
1
3
A
WRITE
STORE
-
0.
MDI
No. Name Application
1) Display
4-line
16-character LCD display
With back-lighted auto light off
With contrast adjusting knob
2) Emergency stop key Shuts off servo power to stop all operations.
3) Valid/Invalid switch Changes over the operations of the teaching box between valid and invalid.
4) Operation keys Operation key switches of the teaching box
5) Internal buzzer
Buzzer sounds when key input or any alarm occurs.
It is also possible to set the buzzer so that it does not sound for key input.
6) Contrast adjusting knob For contrast adjustment of display
