SPECIFICATIONS

194

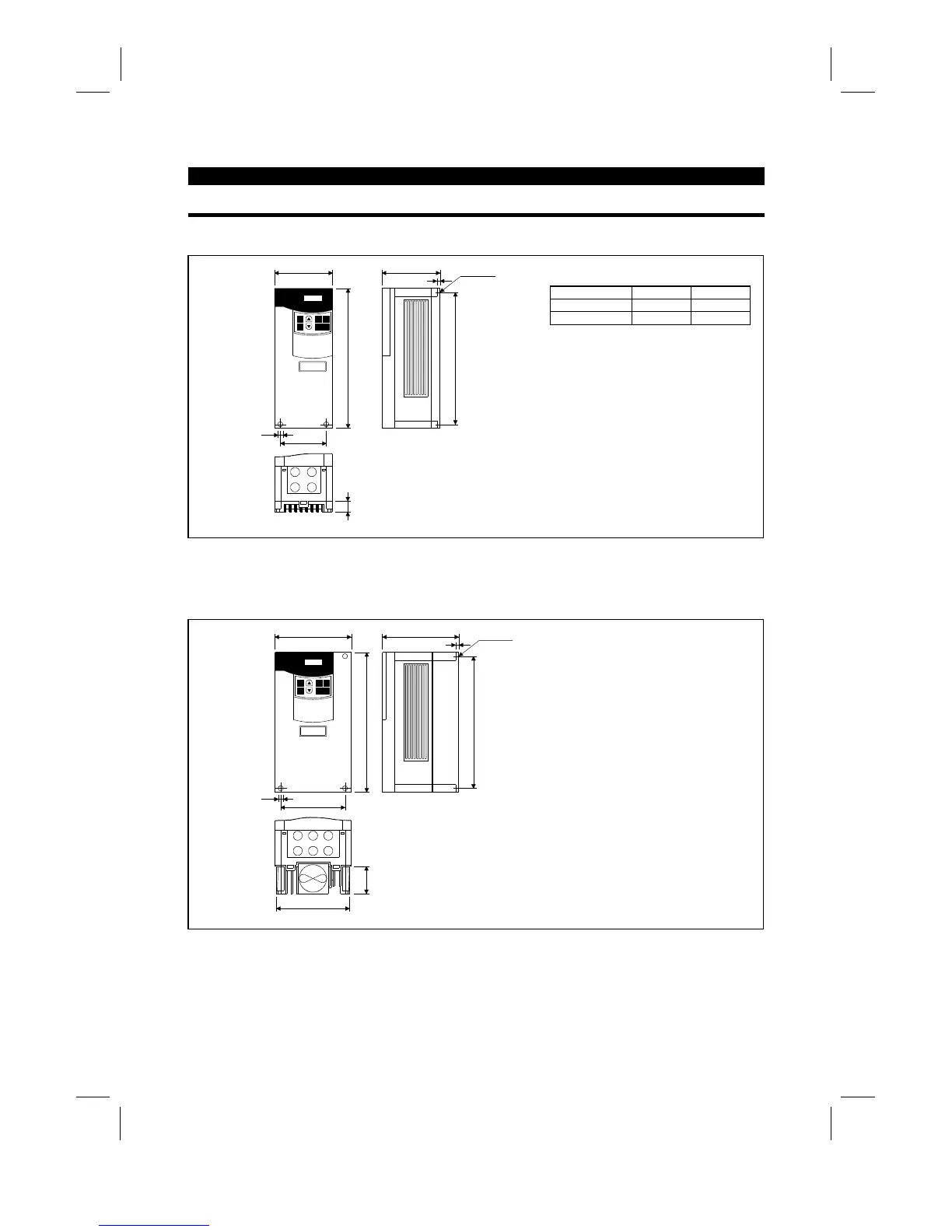

6.1.3 Outline drawings

FR-A520-0.4K, 0.75K

200V class

Inverter Type D D1

FR-A520-0.4K 110 (4.33) 21 (0.83)

FR-A520-0.75K 125 (4.92) 36 (1.42)

110 (4.33)

260 (10.24)

95 (3.74)

6 (0.24)

5 (0.20)

245 (9.65)

2-φ6 hole

(Unit: mm (inches))

FR-A520-1.5K, 2.2K, 3.7K

FR-A540-0.4K, 0.75K, 1.5K, 2.2K, 3.7K

150 (5.91)

260 (10.24)

140 (5.51)

143 (5.63)

49.5 (1.95)

125 (4.92)

6 (0.24)

5 (0.20)

245 (9.65)

2-φ6 hole

Note: FR-A540-0.4K to 1.5K are not provided

with the cooling fan.

(Unit: mm (inches))
