SPECIFICATIONS
197
z

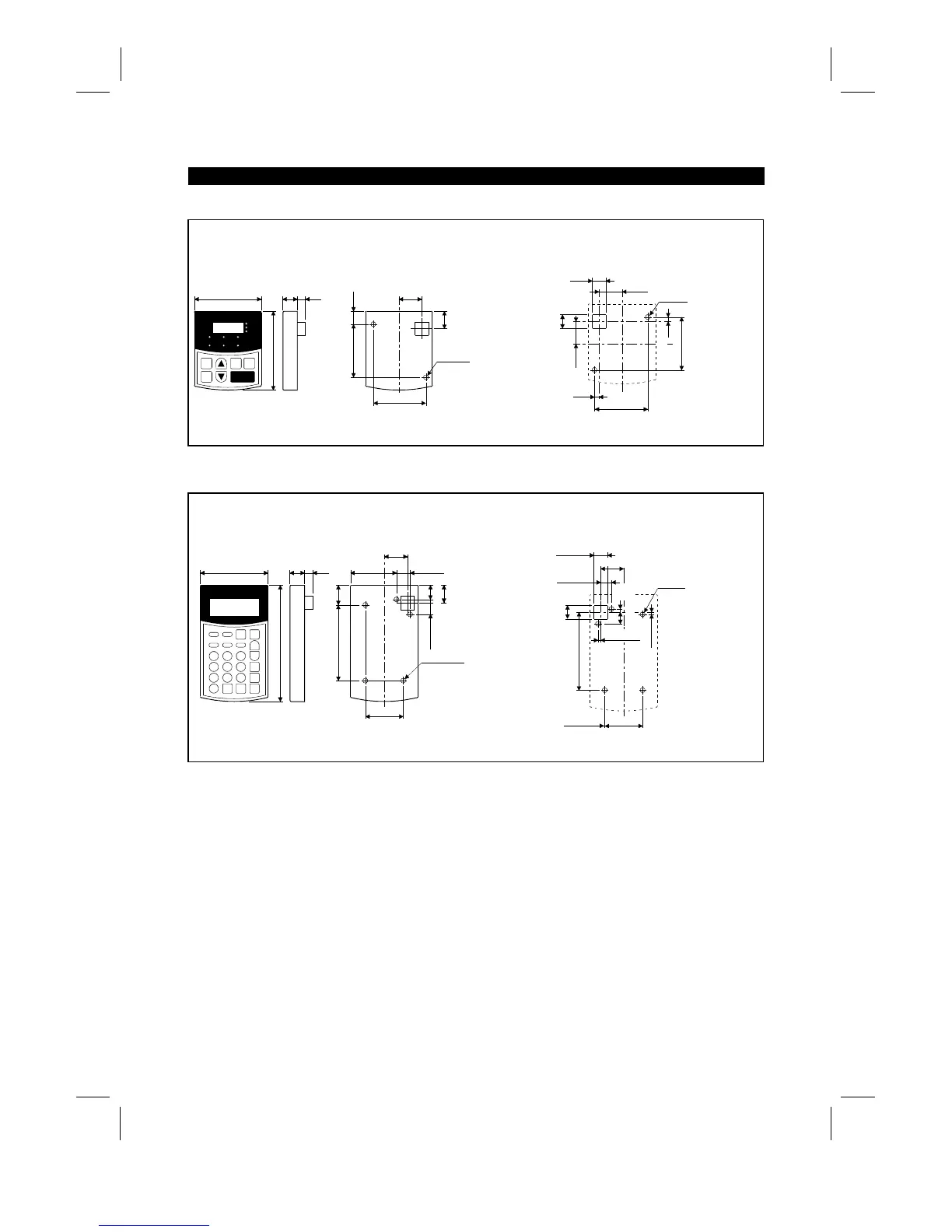

Operation panel (FR-DU04)
<Outline drawing>
81.5 (3.21)
72 (2.83)
15 (0.59) 10.5 (0.41)
20 (0.79)
54 (2.13)
16.5 (0.65)46.5 (1.83)
24 (0.94)
2-
φ
4 hole
<Panel cutting dimension drawing>
19.75 (0.78)
3.25 (0.13)
16.5 (0.65)
23.75 (0.94)
46.5 (1.83)
17 (0.67)
54 (2.13)
2-φ4 hole
3.5 (0.14)
(Unit: mm (inches))
z
Parameter unit (FR-PU04)
<Outline drawing>
125 (4.92)
72 (2.83)
15 (0.59) 10.5 (0.41)
40 (1.57)
80 (3.15)
45 (1.77)
24 (0.97)
13 (0.51)
20 (0.79)
14.5 (0.51)
21.5 (0.85)
5-M3 threads
18.5 (0.79)
<Panel cutting dimension drawing>
40(1.57)
5-
φ
4hole
11.75(0.46)
81.5(3.21)
1.25(0.05)
17(0.67)
16.5(0.65)
1.5(0.06)
23.75(0.93)
1.5
(0.06)
13(0.51)
3.75(0.15)
(Unit: mm (inches))
