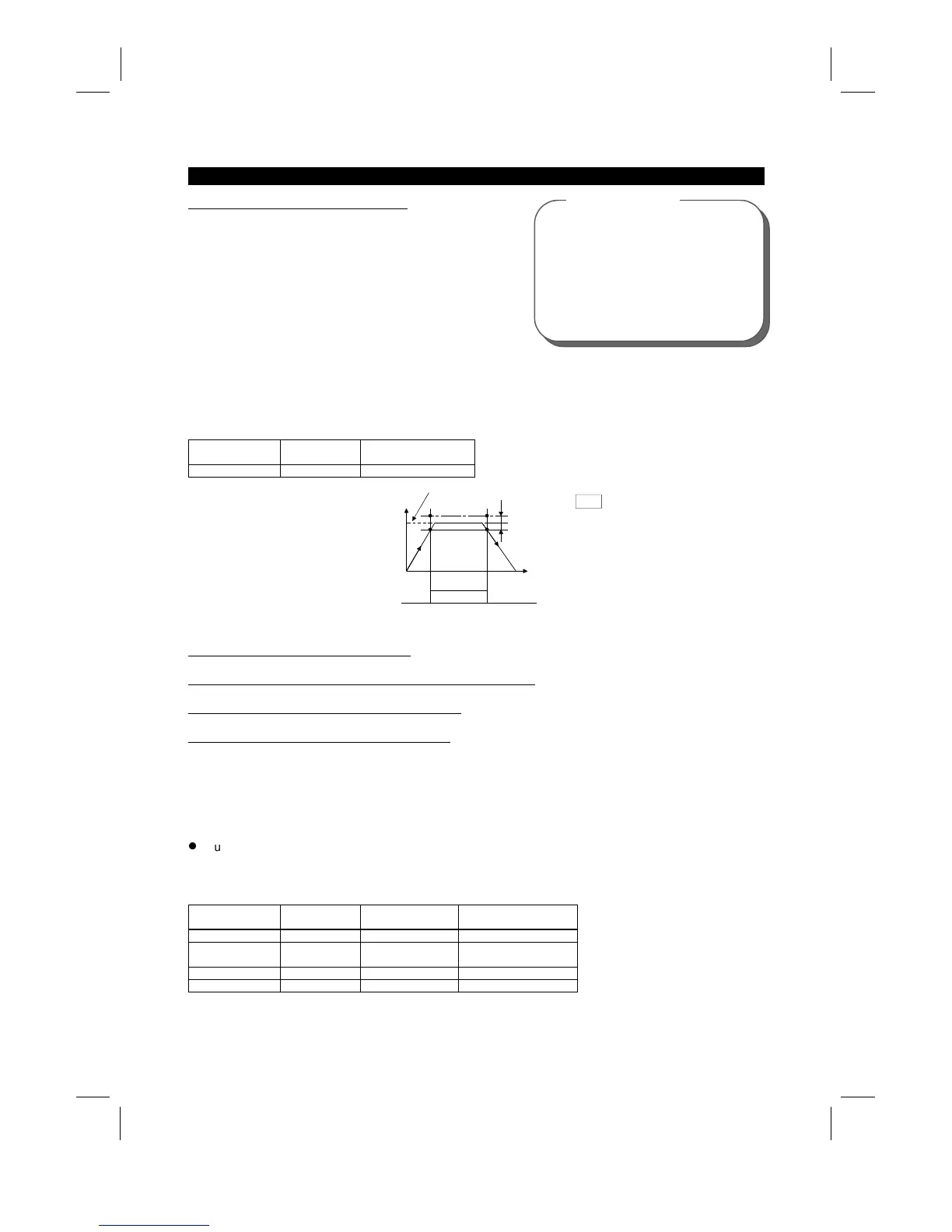

PARAMETERS
79
Pr. 190 "RUN terminal function
selection"
Pr. 191 "SU terminal function selection"
Pr. 192 "IPF terminal function selection"
Pr. 193 "OL terminal function selection"
Pr. 194 "FU terminal function selection"
Pr. 195 "ABC terminal function
selection"
Related parameters
z
Up-to-frequency sensitivity (Pr. 41)
Pr. 41 "up-to-frequency sensitivity"
The ON range of the up-to-frequency signal (SU) output when the output frequency reaches the running
frequency can be adjusted between 0 and
±
100% of the running frequency.
This parameter can be used to ensure that the running frequency has been reached or used as the operation
start signal etc. for related equipment.
Parameter
Number
Factory Setting Setting Range
41 10% 0 to 100%
Output frequency
ON
Running frequency
Adjustable range
Pr.41
Output signal
SU
Time
OFFOFF
z
Output frequency detection (Pr. 42, Pr. 43, Pr. 50, Pr. 116)
Pr. 42 "output frequency detection"
Pr. 43 "output frequency detection for reverse rotation"
Pr. 50 "second output frequency detection"
Pr. 116 "third output frequency detection"
The output frequency signal (FU, FU2, FU3) is output when the output frequency reaches or exceeds
the setting. This function can be used for electromagnetic brake operation, open signal, etc.
z
You can also set the detection of the frequency used exclusively for reverse rotation. This function is
effective for switching the timing of electromagnetic brake operation between forward rotation (rise) and
reverse rotation (fall) during vertical lift operation, etc.
Parameter
Number
Factory Setting Setting Range Remarks
42 6Hz 0 to 400Hz
43 9999 0 to 400Hz, 9999
9999: Same as Pr. 42
setting
50 30Hz 0 to 400Hz
116 9999 0 to 400Hz, 9999 9999: Function invalid
