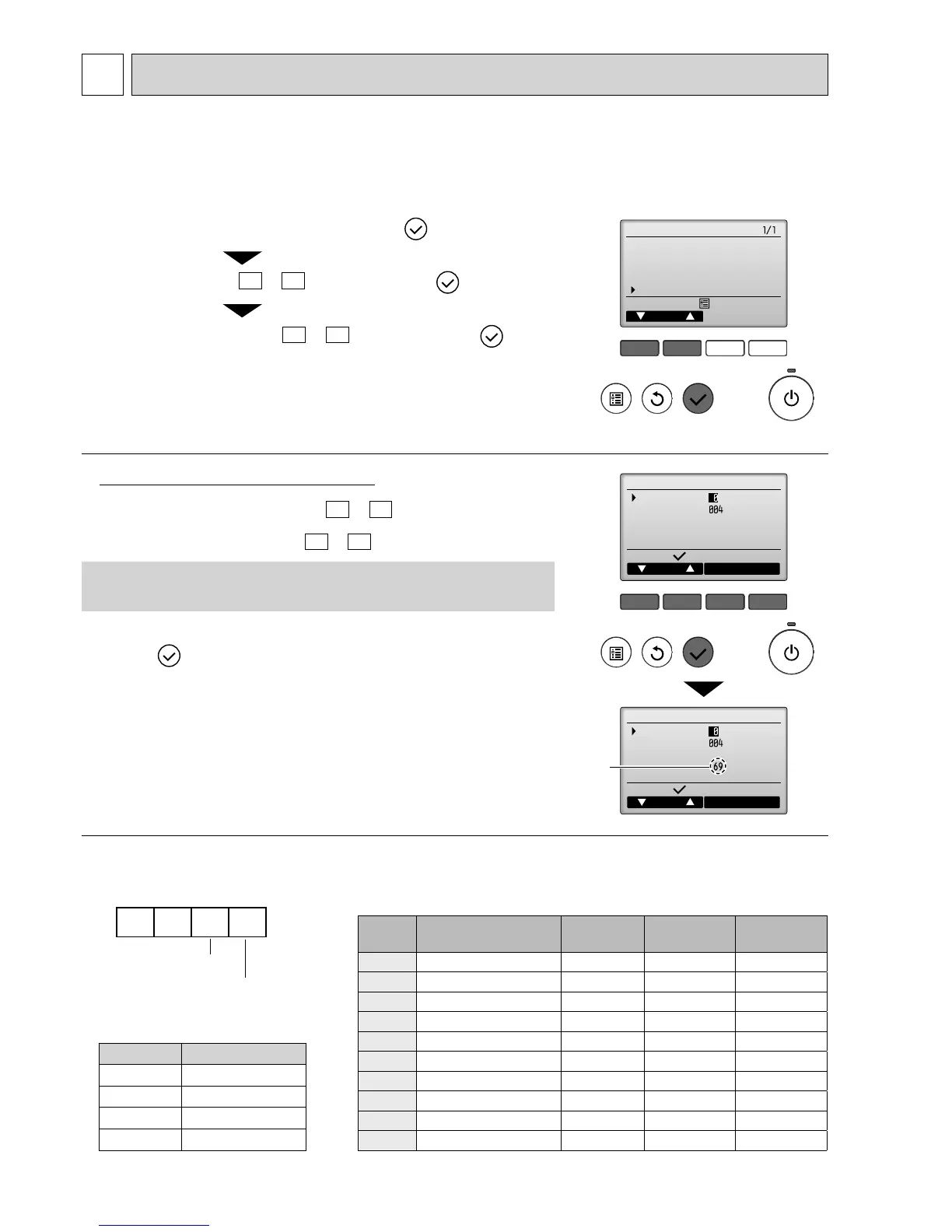

MONITORING THE OPERATION DATA BY THE REMOTE CONTROLLER
Details on the operation data including each thermistor temperature and error history can be confi rmed with the remote controller.
F1 F2 F3 F4
Check menu
Cursor
Service menu:
Error history
Refrigerant volume check
Refrigerant leak check
Smooth maintenance
Request code
Select "Request code" with the F1 or F2 button, and press the button.
Select "Check" with the
F1 or F2 button, and press the button.
2
Set the Refrigerant address and Request code.
Select the item to be changed with the
F1
or
F2
button.
Select the required setting with the
F3
or
F4
button.
■
<Ref.address>setting [ 0 ] – [ 15 ]
■
<Request code>setting
Press the
button, Data will be collected and displayed.
F1 F2 F3 F4
Request code
Request:
Request:
Request code
Ref.address
Request code
Cursor −＋
Ref.address
Request code
Cursor
−＋
Request code: 004
Discharge temperature: 69˚C
Data display
Relay output state
C4
Operation mode
<Operation state> (Request code "0")
1) Operation mode
Display Operation mode
0 STOP • FAN
C COOL • DRY
H HEAT
d Defrost
2) Relay output state
Display
Power currently
supplied to compressor
Compressor Four-way valve Solenoid valve
0— ———
1ON
2ON
3ONON
4ON
5ONON
6ONON
7ONONON
8ON
AON ON
1
Select "Service" from the Main menu, and press the button.
14-1. HOW TO "MONITOR THE OPERATION DATA"
14-1-1. PAR-31MAA
