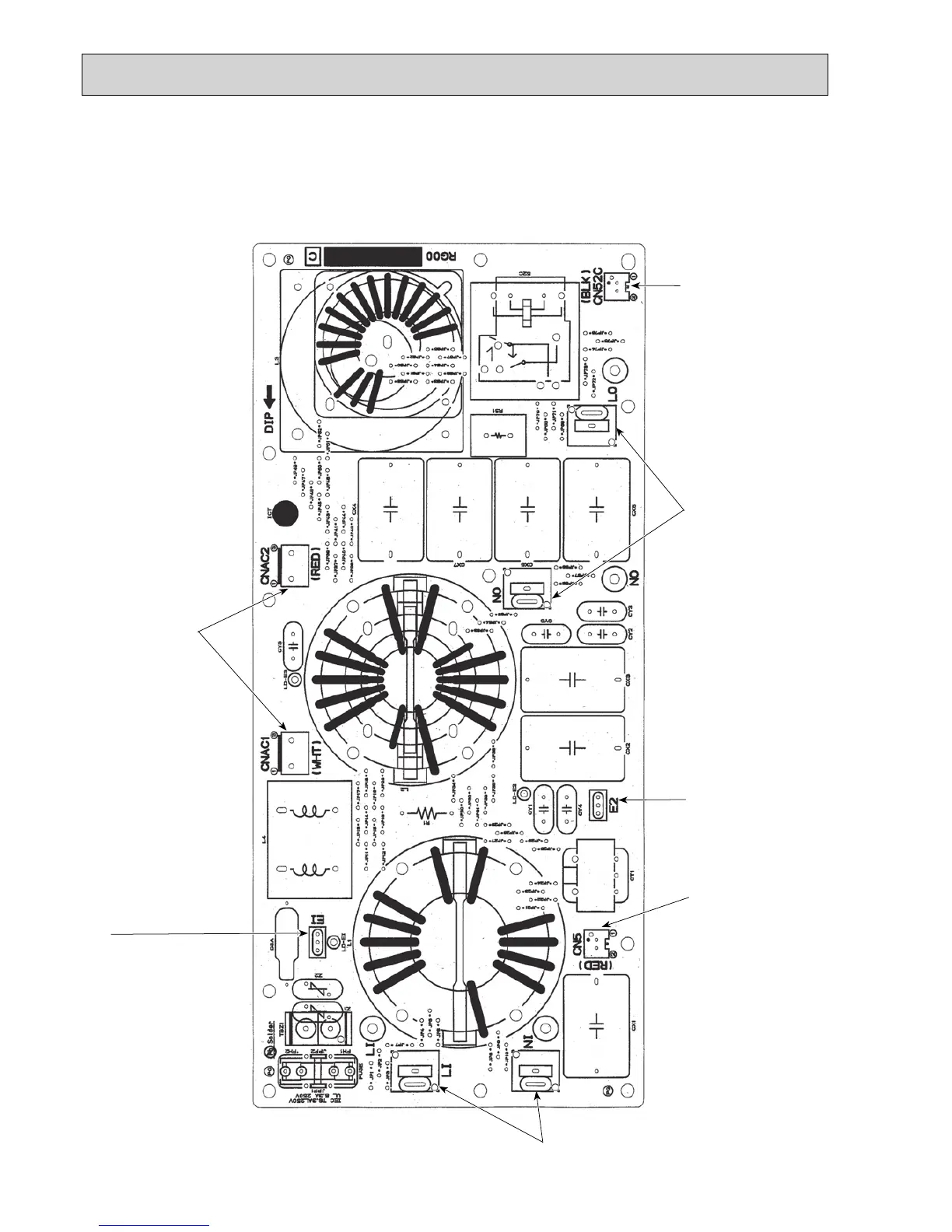

Outdoor noise filter circuit board
PUHZ-P100VHA2.UK PUHZ-P125VHA2.UK PUHZ-P140VHA2.UK
PUHZ-P125VHA2
1.UK PUHZ-P140VHA21.UK
PUHZ-P100VHA3.UK PUHZ-P125VHA3.UK PUHZ-P125VHA3.UK
PUHZ-P100VHA3R1.UK PUHZ-P125VHA3R1.UK PUHZ-P125VHA3R1.UK
CNAC1, CNAC2
230V AC
(Connect to the
outdoor control-
ler circuit board
(CNAC))
EI
Connect to
the earth
CN5
Primary current
(Connect to the
outdoor power
circuit board
(CN5))
LO, NO
Voltage of 230V AC is
output
(Connect to the outdoor
power circuit board
(TABS, TABT))
CN52C
52C driving signal
(Connect to the outdoor
controller circuit board
(CN52C))
E2
Connect to the earth
LI, NI
Voltage of 230V AC is input
(Connect to the terminal block(TB1))
OCH415G
