12. Removing the reactor (DCL)
(1) Remove the service panel. (See Figure 1)
(2) Remove the top panel. (See Figure 1)
(3) Remove the control box. (See Photo 3)
<Removing the reactor>
(4) Remove 4 reactor fixing screws (4 × 10) and remove the
reactor.
* The reactor is attached to the rear of the control box.
Photo 10 (PUHZ-P125/140VHA2.UK)
Reactor fixing screw
Reactor fixing screws
Reactor
(DCL)
Control box
10. Removing bypass valve coil (SV) and bypass valve
(1) Remove the service panel. (See Figure 1)
(2) Remove the top panel. (See Figure 1)
(3) Remove the valve bed. (Refer to procedure 8)
(4) Remove side panel (R). (Refer to procedure 8)
(5) Remove the bypass valve coil fixing screw (M5 × 6).
(6) Remove the bypass valve by sliding the coil upward.
(7) Disconnect the connector SV2 (blue) on the controller
circuit board in the control box.
(8) Loosen the clamp on the separator and unbind the lead
wires.
(9) Recover refrigerant.
(10) Remove the welded part of bypass valve.
Note 1: Recover refrigerant without spreading it in the air.
Note 2: The welded part can be removed easily by
removing the right side panel.

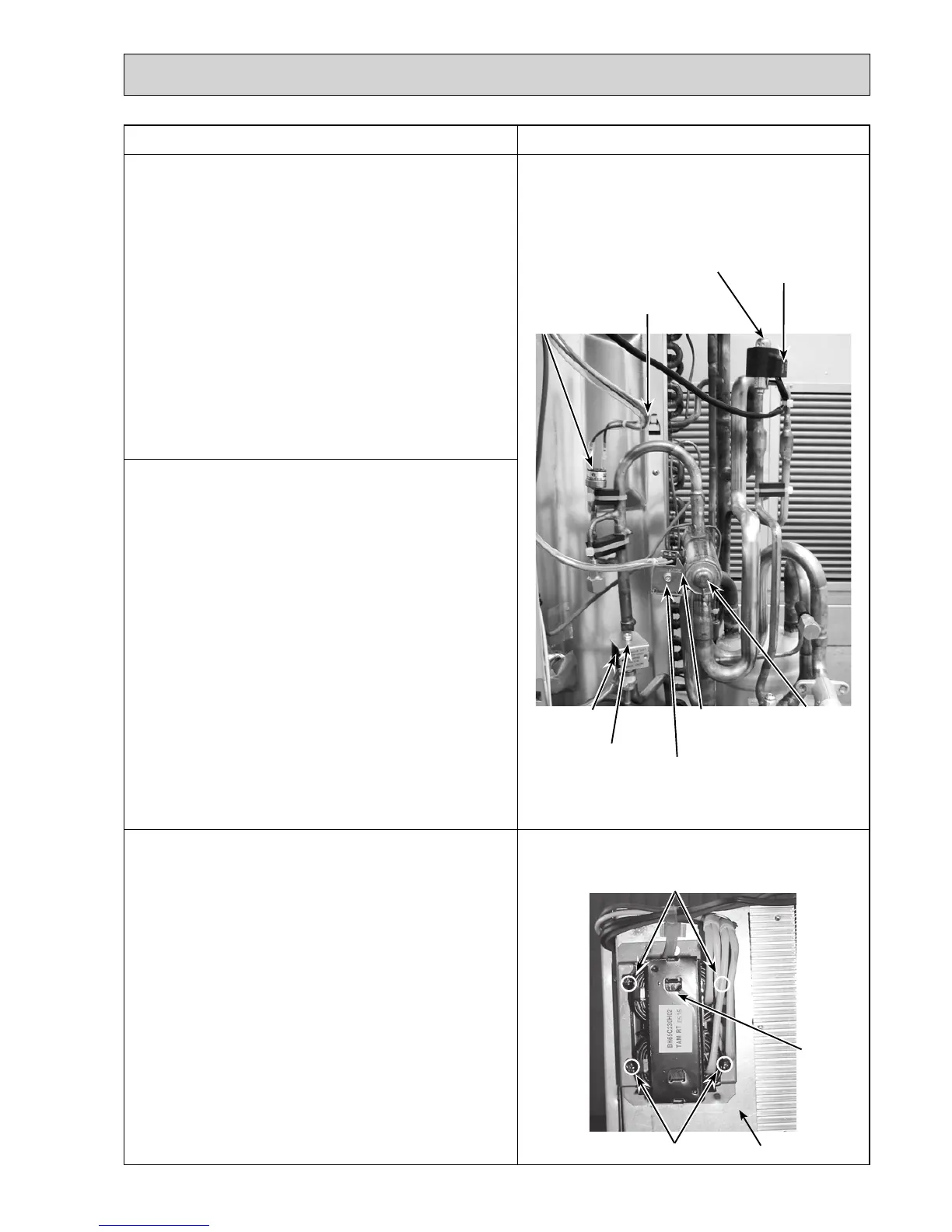

Photo 9
High pressure switch
Lead wire of high
pressure switch
LEV coil (LEV A)
LEV
Bypass valve
coil (SV)
Bypass
valve coil
fixing screw
4-way valve coil
fixing screw
4-way valve
4-way valve coil
(21S4)
11. Removing the high pressure switch (63H)
(1) Remove the service panel. (See Figure 1)
(2) Remove the top panel. (See Figure 1)
(3) Remove the valve bed. (Refer to procedure 8)
(4) Remove the side panel (R). (Refer to procedure 8)
(5) Pull out the lead wire of high pressure switch.
(6)
Disconnect the lead wire of 63H (Yellow) on the controller
circuit board.
(7) Remove the control box. (Refer to procedure 3)
(8) Loosen the clamp on the separator and unbind the lead
wires.
(9) Recover refrigerant.
(10) Remove the welded part of high pressure switch.
Note 1: Recover refrigerant without spreading it in the air.
Note 2: The welded part can be removed easily by
removing the right side panel.
Note 3: When installing the high pressure switch, cover it
with a wet cloth to prevent it from heating (100°C
or more), then braze the pipes so that the inside
of pipes are not oxidized.
