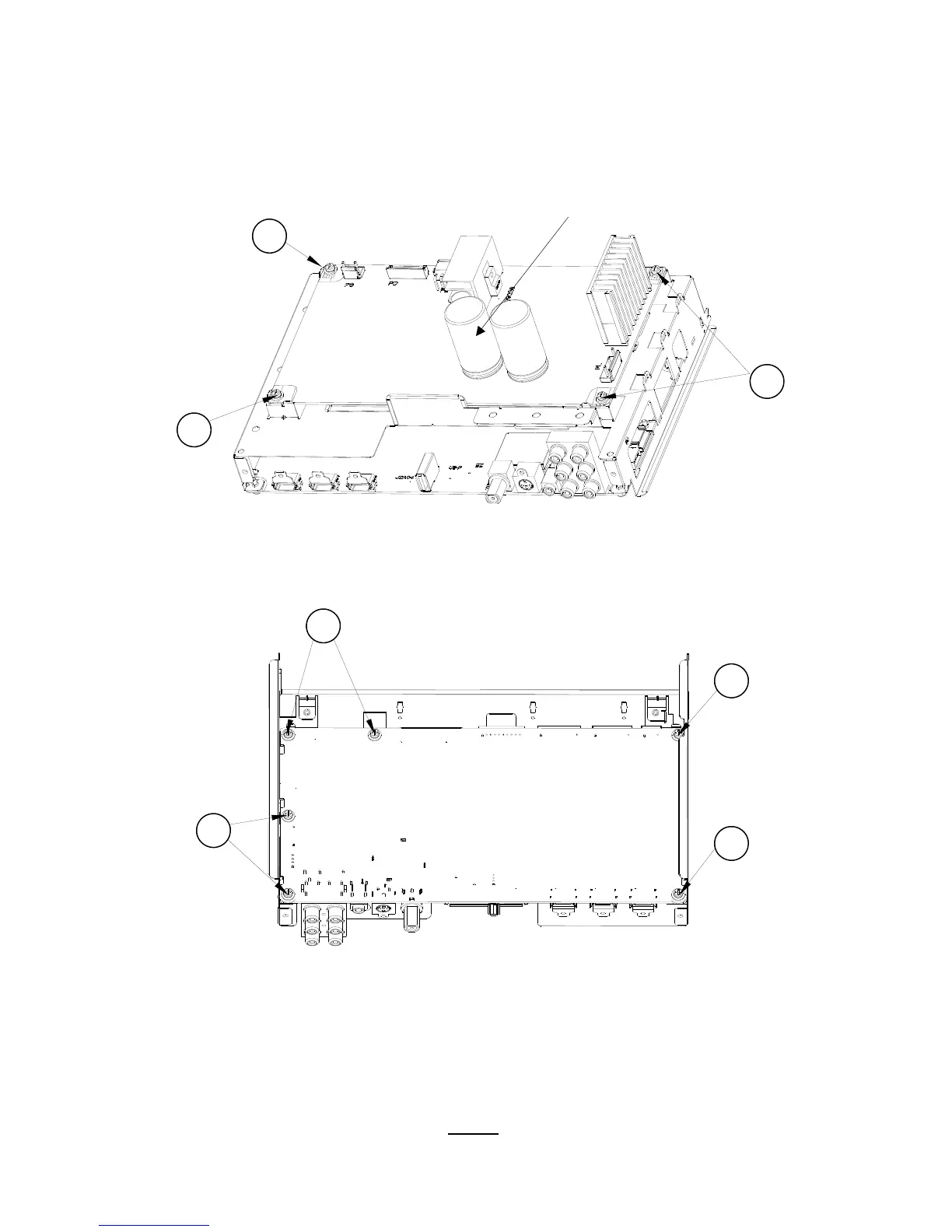

PWB-POWER Removal
1. Disconnect all cables from the PWB-POWER.
2. Remove screws (A).
3. Pinch the Retainer to release the PWB.
4. Lift the PWB-POWER from the chassis.
A
A
A
PWB-MAIN Removal
1. Disconnect all cables to PWB-MAIN.
2. Remove screws (A) from the bottom of the PWB-MAIN.
3. Lift the PWB-MAIN from the chassis.
A
After PWB-MAIN Replacement
See Data Transfer in Service Procedures section.
1. V45C, V45 & V45CA: Perform “Restore Engine Data From Backup.”
2. V45+, V45++ & V45CB: Perform “Restore Engine Data From Backup” and “Restore Geometry Data From
Backup.”
V45+, V45++, V45CB IMPORTANT REPLACEMENT NOTE: If the customer has subscribed to VUDU (Internet
program provider), the customer must be instructed to contact VUDU to re-activate their account after the replace-
ment PWB has been installed. The original PWB cannot
be installed in another TV. It must be returned to Mitsu-
bishi per policy.
Retainer
(Pinch)
A
A
A
