SCREEN REPLACEMENT 73” Models
Screen Assembly Removal and Replacement
1. V45C, V45, V45+ - Remove the Screw Caps to access screws (A).
2. V45++ - Remove the ORNAMENT LEFT & RIGHT first by pinching up and pulling away from the bottom.
Then remove the ORNAMENT CENTER using the same method.
3. Remove screws (A).
4. Remove screws (B) around the rear edge of the screen bezel.
5. During re-assembly replace screws in their original locations.
B
B
B
B
B

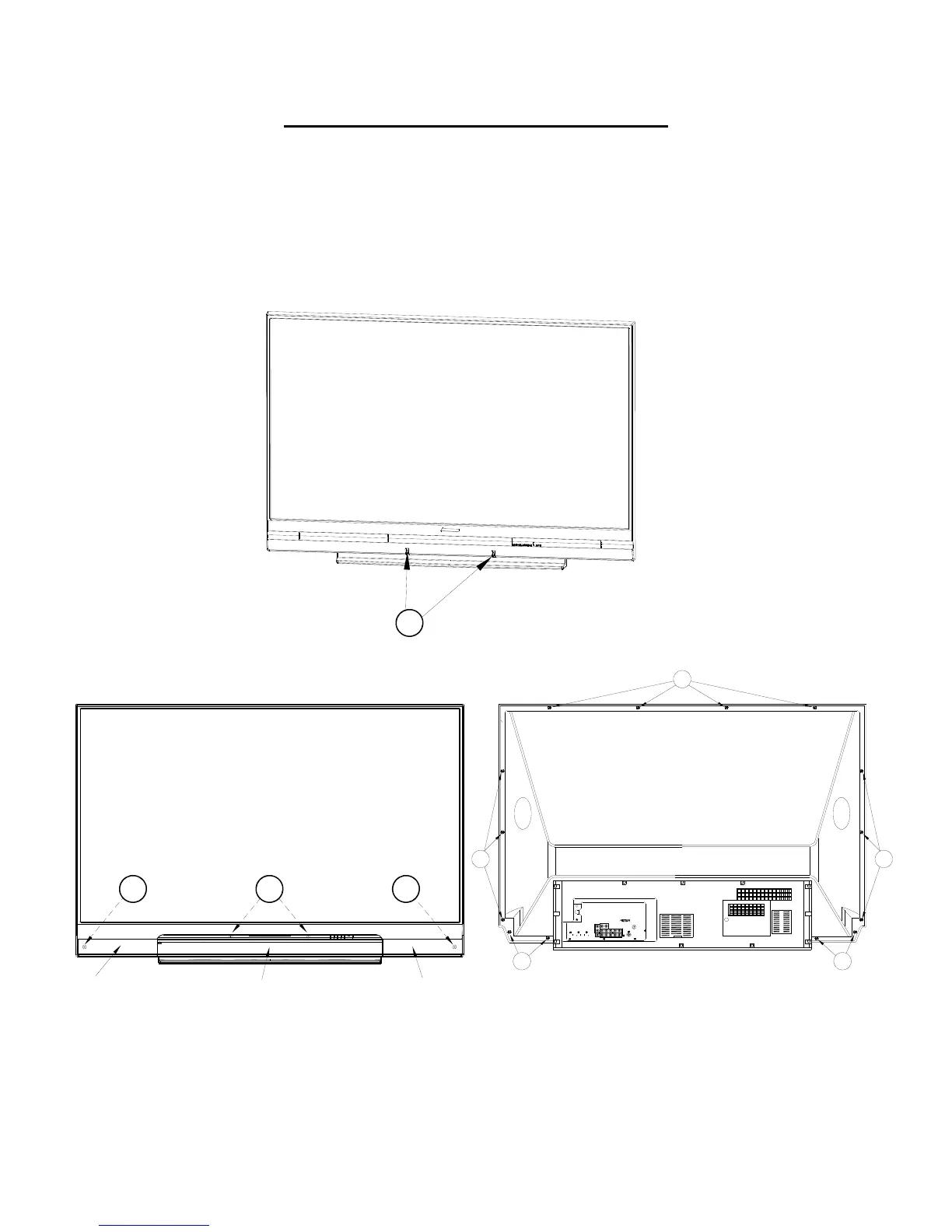

73 INCH
V45++ (73”)
ORNAMENT
CENTER
(Speaker Cover)
ORNAMENT RIGHT ORNAMENT LEFT
A A A
V45C,V45, V45+ (73”)
A
Number and Location of
Screws Varies by Model
