DLP
®
HOME CINEMA
43
A
A
J12 (LVDS)
PE
(Engine Power)

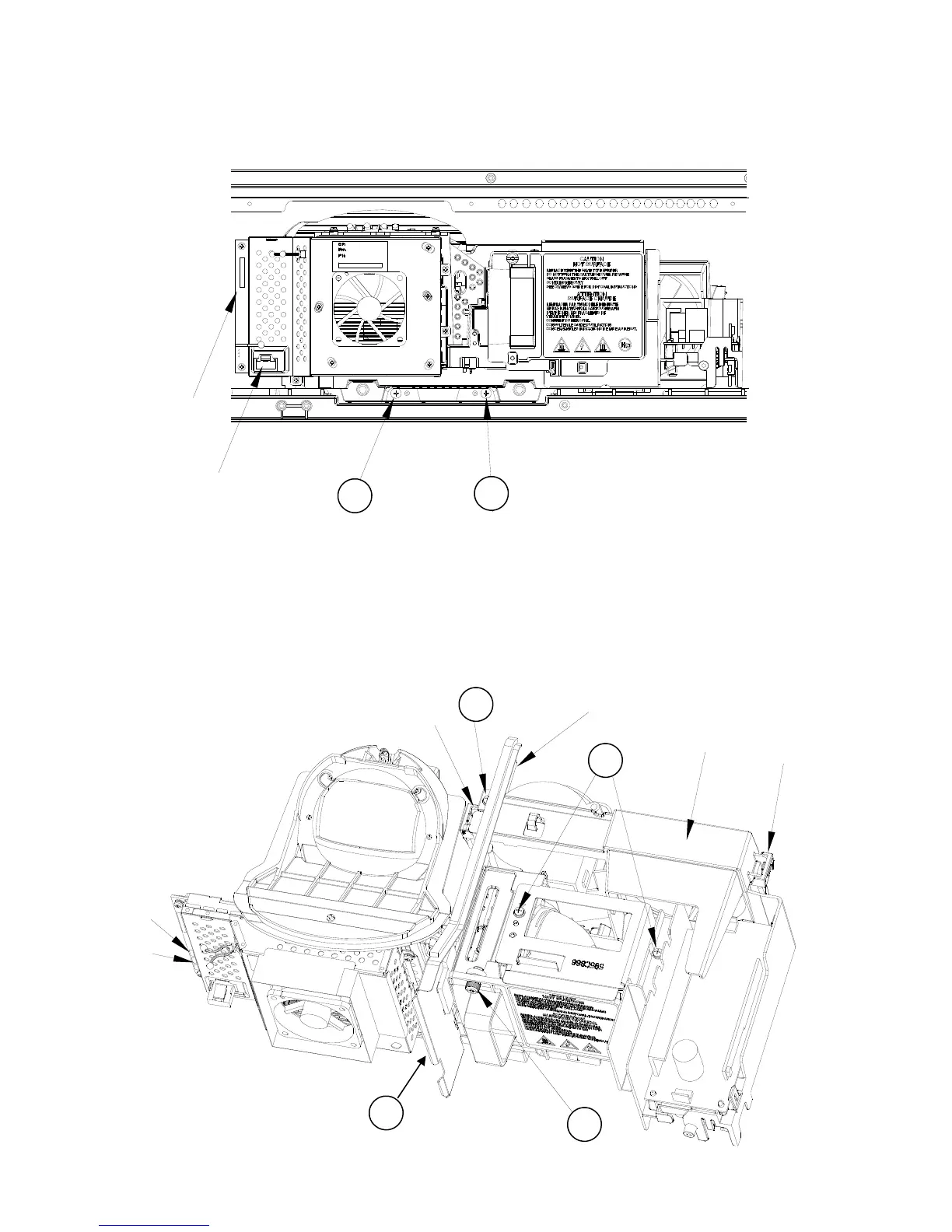

OPTICAL ENGINE ASSEMBLY REMOVAL (Continued)
1. Disconnect the PE and J12 connectors from the Engine.
2. Remove screws (A).
3. Slide the Engine Assembly back out of the cabinet.
OPTICAL ENGINE ASSEMBLY - Disassembly
1. Loosen screw (A) to remove the Lamp Cartridge.
2. Remove screws (B) and the lamp top cover.
3. Remove screws (C) and the Engine Plate
4. Disconnect the Exhaust and Sirocco Fan Connectors (J4 and J8) from the back of the Engine and loosen the
wiring harnesses from the looms.
5. Release the Latches to remove the Fan Holder.
B
J4
(Exhaust Fan)
LATCH
J8
(Sirocco Fan)
LATCH
A
FAN HOLDER
C
ENGINE PLATE
C
To Next Page
