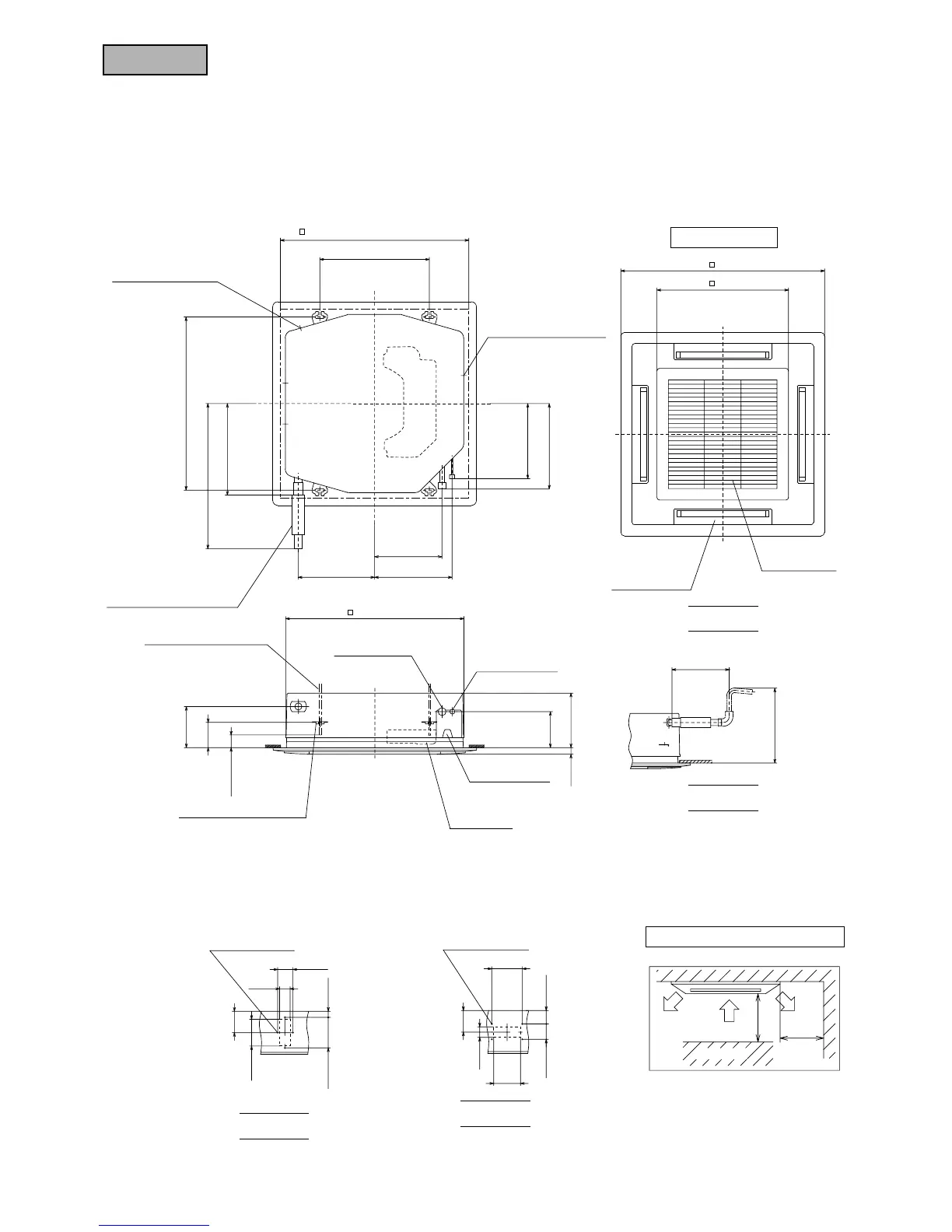

18.2.3 Exterior dimensions
(1) Indoor unit
(a) Ceiling recessed type (FDT)
Model FDT208-A
B→
D
→
C
→
A
→
Gas piping
φ15.88(5/8")
Exhaust air opening
for ducting
Fresh air opening
for ducting
Air outlet grille
Air inlet grille
(Suspension bolts pitch)
(Suspension bolts
pitch)
(Ceiling hole size)
Drain hose(Accessories)
(Connectable with VP25)
Space for installation and service
Holes for
tapping screws
Holes for
tapping screws
Hole for wiring
Control box
Lug for Suspension bolts
Liquid piping
φ6.35(1/4")
(Max. Drain up)
Obstacle
Suspension bolts
(M10 or M8)
295 ~ 325
700 or more
570
359
430
264
304300
515
800
700
161
99
49 or more
26
215
141
295
336
1000
or more
35
110
90
90
50
70 140
80
87
37100
120
740
680
4-φ4
VIEW A
VIEW B
VIEW D
VIEW C
1000 or more
4-φ4
Unit : mm
Decorative Panel
