V MULTI
18.5.3 Installation of outdoor unit
OWARNING
BE SURE TO READ THESE INSTRUCTIONS CAREFULLY BEFORE BEGIN-
NING INSTALLATION. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD
CAUSE SERIOUS INJURY OR DEATH, EQUIPMENT MALFUNCTION AND/
OR PROPERTY DAMAGE.
(1) Installation

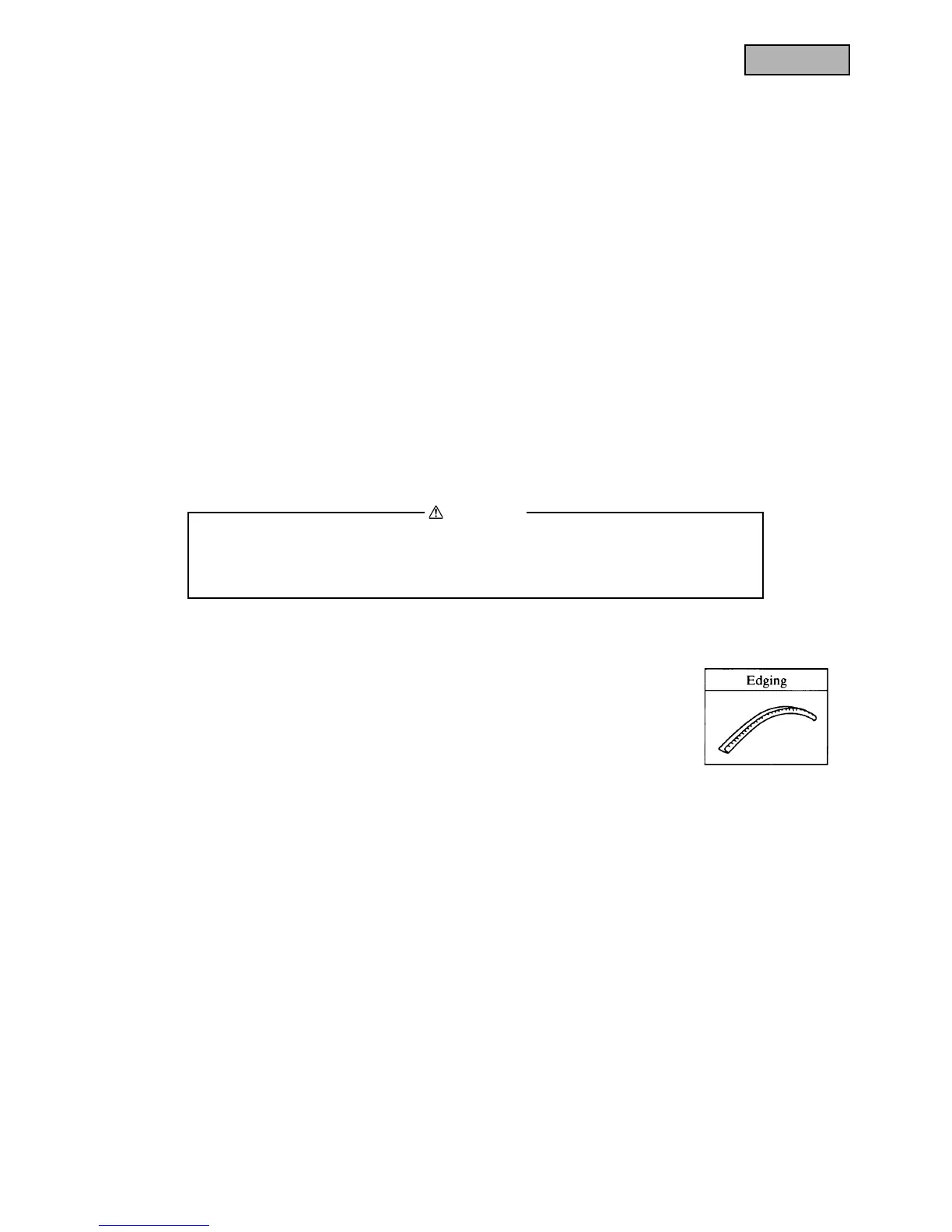

(a) Accessories
Confirm accessories shown below are attached in the bag with this installation manual.
1) “Edging” for protection of electric wires from opening edge.
(b) Selection of installation location
Select the installation location after obtaining the approval of customer.
1) The place where the foundation can bear the weight of Outdoor unit.
2) The place where there is no concern about leakage of combustible gas.
3) The place where it is not stuffy.
4) The place where free from thermal radiation of other thermal source.
5) The place where flow of drain is allowed.
6) The place where noise and hot air blast do not trouble neighboring houses.
7) The place where there is no obstruction of wind at the intake air port and discharge air port.
18.4
OUTLINE OF OPERATION CONTROL BY MICROCOMPUTER
Except for function relating to heating, same as the unit for FDT(N) heat pump type. See page 317.
18.5 APPLICATION DATA
18.5.1 Installation of indoor unit
(1) Ceiling recessed type (FDT)
Except for function relating to heating, same as the unit for FDT(N) heat pump type. See page 333.
(2) Cassetteria type(FDR)
Except for function relating to heating, same as the unit for FDR heat pump type. See page 571.
18.5.2 Installation of remote controller(Optional parts)
Except for function relating to heating, same as the unit for FDT(N) heat pump type. See page 337.
