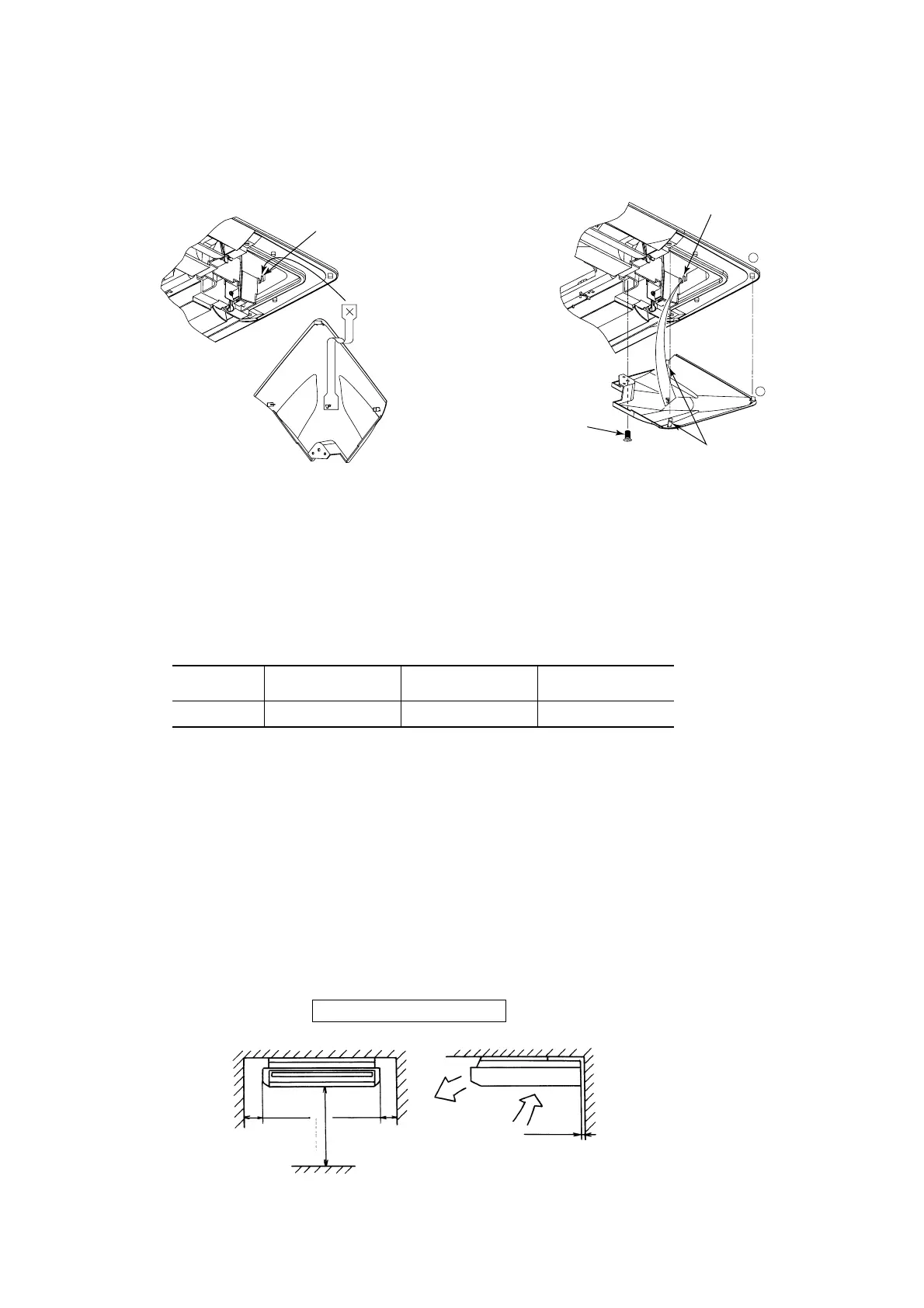

8) Corner panel installation
1 Hook the corner panel strap to the pin on the decorator panel as shown in the figure.
2 Insert part
a
on the corner panel in part
A
on the decorator panel, then fit the 2 claws and fasten the corner panel
screw.
9) Installing the air inlet grille
• Install the air inlet grille by following the removal procedure (item 4) in reverse order.
Note (1) : Match up the installation position of the panel’s striker and the “Pull” character position direction on the surface of the grille. If these do not
match, the striker could be damaged.
(2) Ceiling suspension type (FDEN)
(a) Selection of installation location
1) A place where good air circulation and delivery can be obtained.
Cold air throw
Models FDEN151, 201
Air throw 7.5
FDEN251, 301
8
FDEN401, 501
9
Unit : m
Conditions
(1) Installation height: 2.4 ~ 3.0 m above the floor
(2) Fan speed: Hi
(3) Location: Free space without obstacles
(4) Distance of reach indicates the horizontal distance after the wind touched down the floor.
(5) Air velocity at the throw: 0.5 ( m/sec.)
2) A place where ceiling has enough strength to support the unit.
3) A place where there is no obstruction to the return air inlet and supply air outlet ports.
4) Places exposed to oil splashes or steam (e.g. kitchens and machine plants).
Installation and use at such places will incur deteriorations in the performance or corrosion with the heat exchanger or
damage in molded synthetic resin parts.
5) A place where the space shown below may be secured.
Unit : mm
5 or more
150 or more
Obstacle
300 or more
100 or more
Ceiling mouting installation
