5. Slide the top cover rearwards slightly, then lift it off.
Refitting the cover is simply the reverse of removal. Take effective
anti-static precautions while the top cover is off.

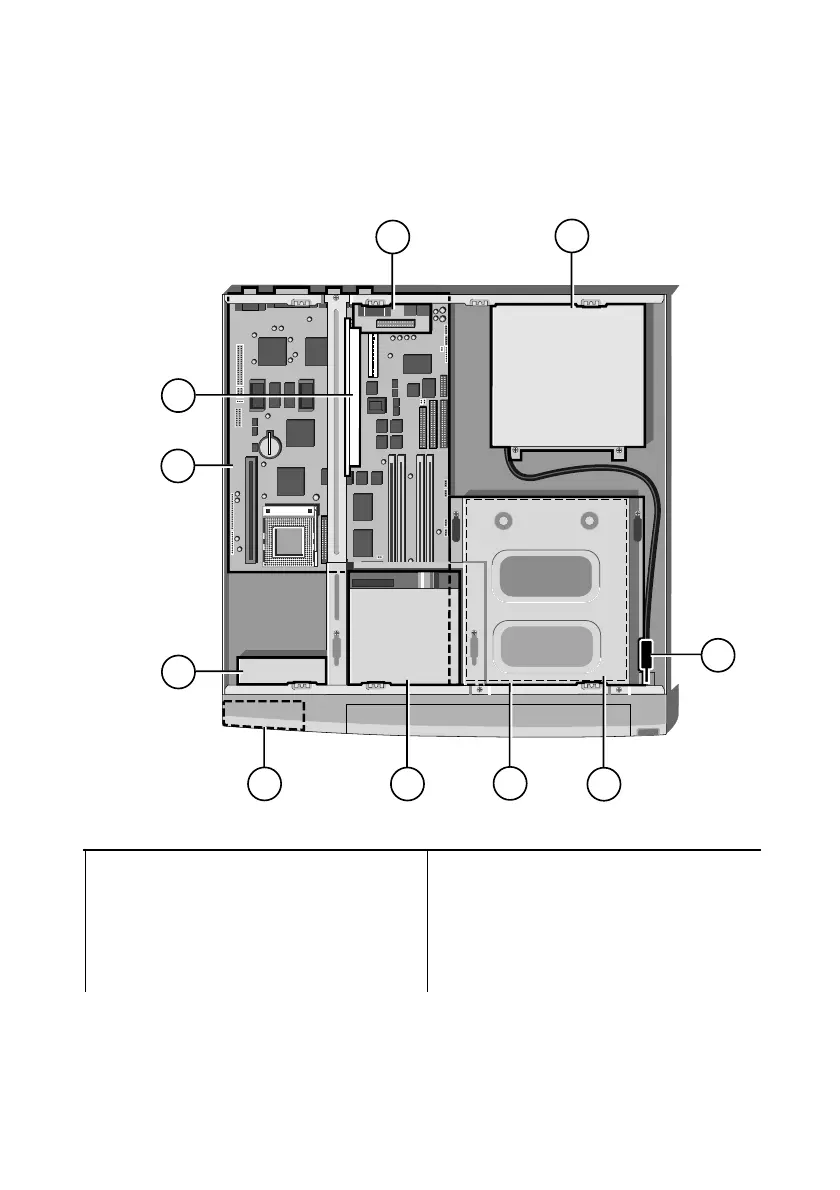

The components inside
1
System main board, for details see ‘appendix B’.
2
Processor and system cooling fan.
3
Multimedia interface board. (under front bezel).
4
Floppy disk drive, see chapter ‘The system drives’
5
CD-ROM drive, see chapter ‘The system drives’.
6
Hard disk drive, (below 5)
7
‘Power’ and ‘Standby / Restore’ switches
8
Power supply unit.
9
Rear audio sub-board see chapter ‘multimedia’.
10
Riser board, see chapter ‘Expansion’
For simplicity, ribbon and other cables are not shown in the above illustration
2
3
4
5
6
7
8
9
1
10
