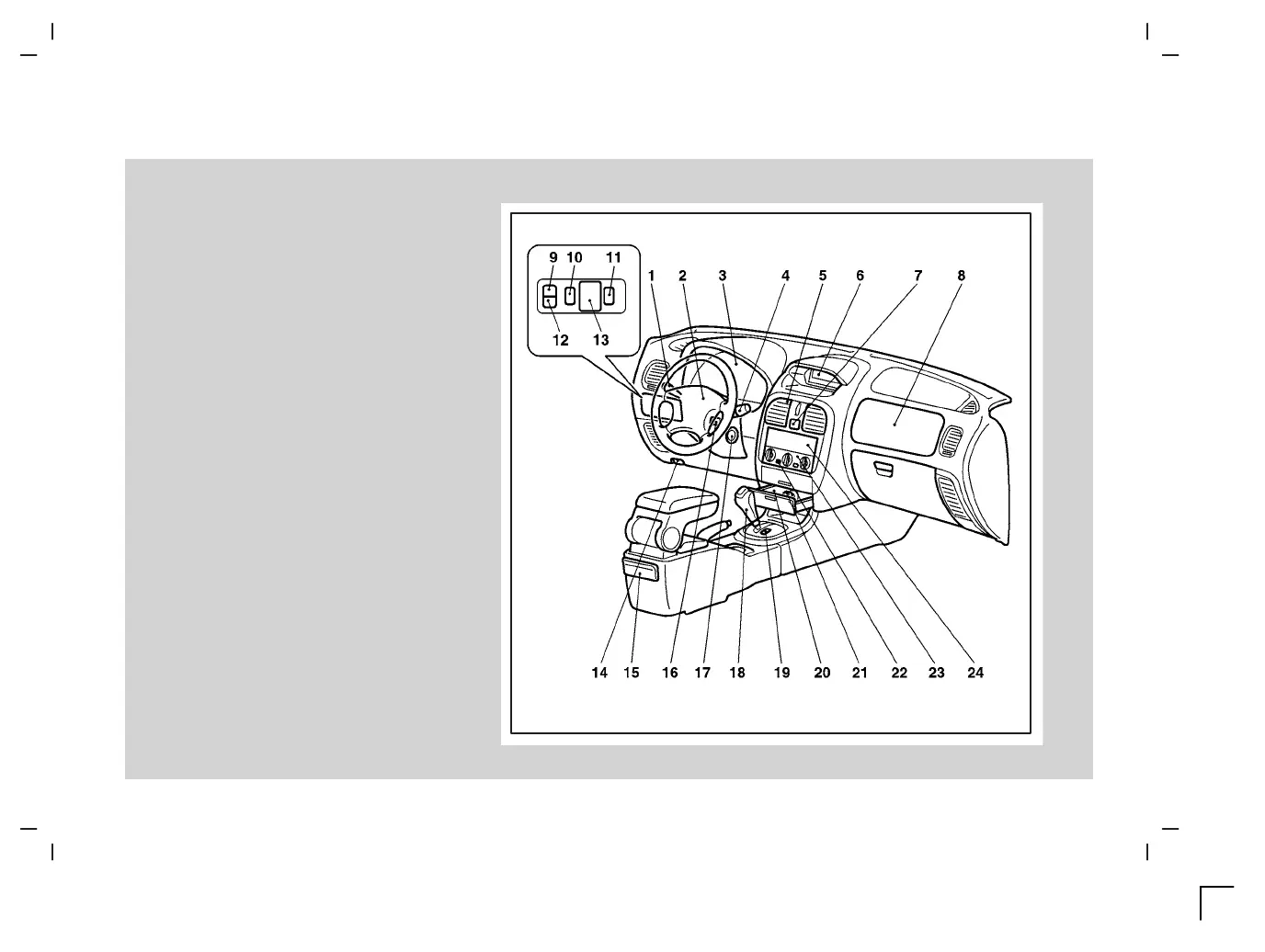

overview–Instruments and Controls
EB21AMFf
1- Combination headlamps, dipper and turn signal
switch ! p. 4–12
Headlamp washer switch* ! p. 4–17
2- Supplemental restraint system (for driver’s seat)
! p. 3–22
Horn switch ! p. 4–22
3- Meter and gauges ! p. 4–2
4- Windscreen wiper and washer switch ! p. 4–15
Rear window wiper and washer switch (Hatchback
only) ! p. 4–16
5- Ventilators ! p. 6–29
6- Multi centre display ! p. 4–24
Digital clock ! p. 4–26
7- Hazard warning flasher switch ! p. 4–18
8- Supplemental restraint system (for passenger’s seat)
! p. 3–22
9- Front fog lamp switch* ! p. 4–20
10 - Headlamp levelling switch ! p. 4–13
11 - Rheostat* (meter illumination control) ! p. 4–21
12 - Rear fog lamp switch ! p. 4–21
13 - Electric remote-controlled outside rear-view mirrors
switch* ! p. 5–32
14 - Bonnet release lever ! p. 2–8
15 - Auto-speed (cruise) control lever* ! p. 5–36
16 - Ignition switch ! p. 5–9
17 - Gearshift or selector lever ! p. 5–14, 5–16
18 - A/T mode change over switch (vehicle with auto-
matic transmission INVECS-II 4A/T) ! p. 5–21
19 - Ashtray ! p. 6–46
20 - Cigarette lighter ! p. 6–45
21 - Rear window demister switch ! p. 4–19
22 -
Centre accessory box ! p. 6–47
23 - Heater/Air conditioning* ! p. 6–30, 6–36
24 - Audio* ! p. 6–2
