INSTRUMENTS AND CONTROLS
4–6
D50A532d
A: Petrol-powered vehicle
B: Diesel-powered vehicle

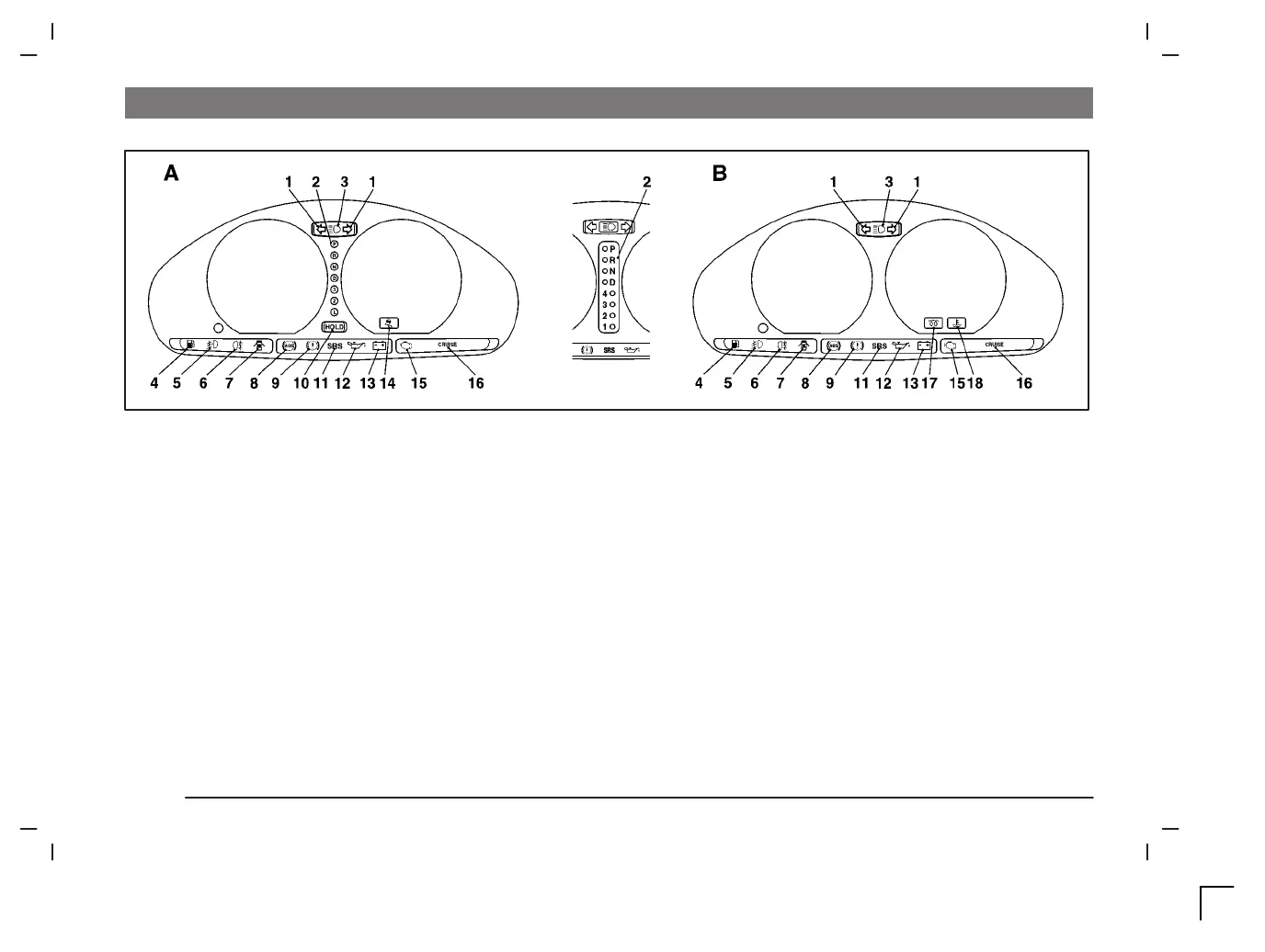

Indication and warning lamps
ED50AMFe
1- Turn-signal indication lamps/Hazard warning lamps
2- Automatic transmission indication lamp
(vehicles with A/T only, “N” indicator lamp is used also as A/T
warning lamp.) ³ Page 5–18
3- High - beam indication lamp
4- Low fuel warning lamp
5- Front fog lamp indication lamp*
6- Rear fog lamp indication lamp
7- Door ajar warning lamp
8- ABS warning lamp*³ Page 5–28
9- Brake warning lamp
10-HOLD indication lamp (vehicle with automatic transmission IN-
VECS-II 4A/T only)³ Page 5–20
11-Supplemental restraint (SRS) warning lamp ³ Page 3–36
12-Oil pressure warning lamp
13-Charge warning lamp
14-TCL indication lamp* ! Page 5–34
15-Check engine indication lamp
16-Cruise control indication lamp*³ Page 5–35
17-Diesel preheat indication lamp
(diesel-powered vehicles only)
18-Overheating warning lamp
(diesel-powered vehicles only)
NOTE
To find information concerning the indication or warning lamps
marked by the symbol “³Page xx”, refer to the specified pages. For
the other indication and warning lamps, refer to the subsequent
pages.
