INSTRUMENTS AND CONTROLS
4–21
Type 1
E08B026a

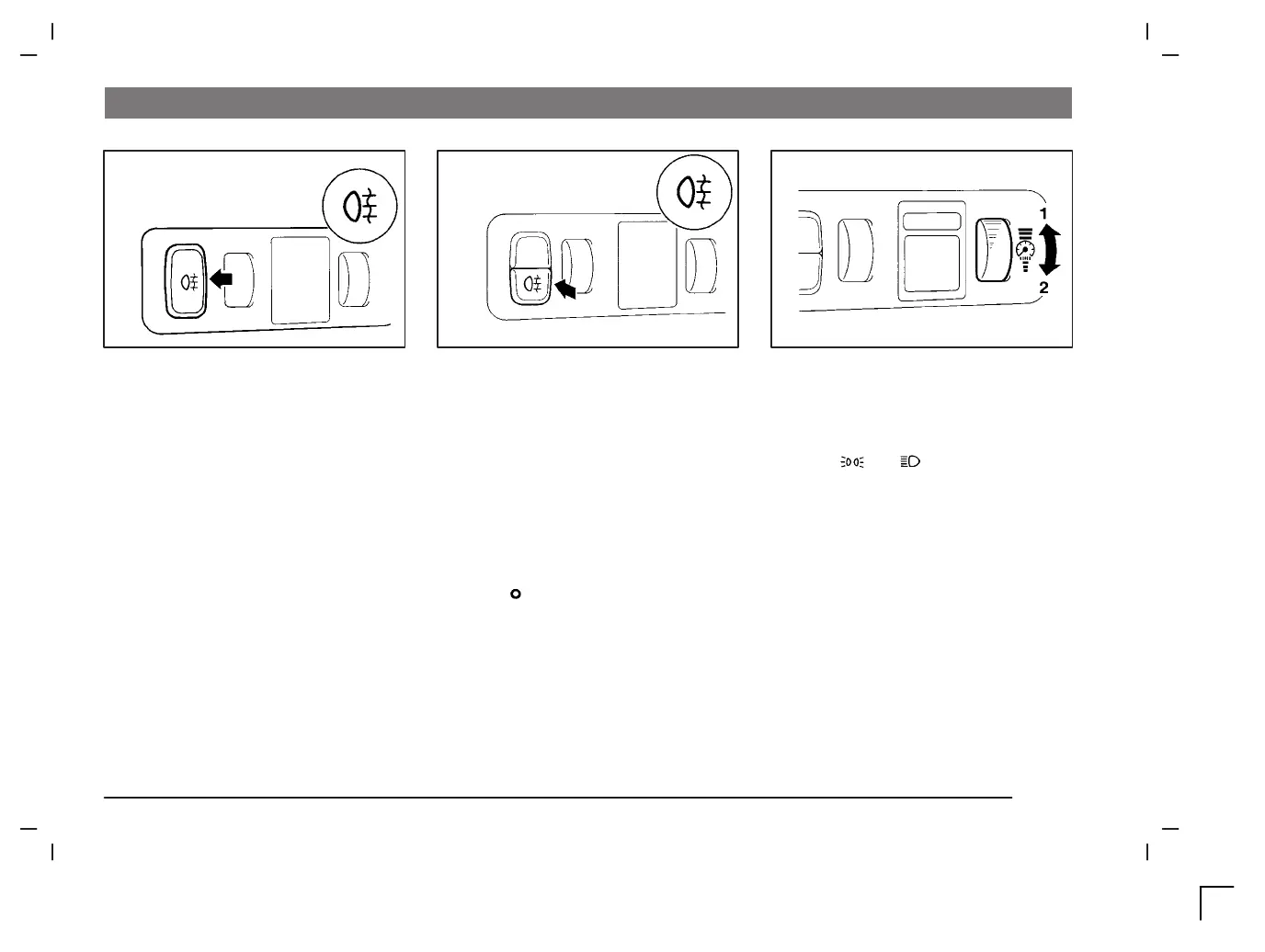

Rear fog lamp switch
EE08BAIa
The rear fog lamp can be operated when the
headlamps or front fog lamps (if so
equipped) turn on.
Push the switch to turn on the gear fog lamp,
and push the switch again to turn it off.
The indication lamp in the instrument cluster
will illuminate while the rear fog lamp is on.
Type 2
E08B011a
NOTE
(1) The rear fog lamp is automatically
turned off when the headlamps and
front fog lamps (if so equipped) turned
off.
To t u r n on the rear fog lamp again, push
the switch again when the headlamps
or front fog lamps (if so equipped) turn
on.
(2) In case of vehicles with Daytime Run-
ning Lamp, the front fog lamp can be op-
erated even if the lamp switch is set to
the “
” (OFF) position, because the
low beam of the headlamps, tail lamps,
etc. illuminate when the ignition key is at
the “ON” position.
(3) The rear fog lamp is installed only on the
driver’s side.
E15A028a
Rheostat
(meter illumination control)
EE15A-Ma
The rheostat can be adjusted while the lamp
switch is “
” or “ ”.
Turn the dial to adjust the meter illumination
to the desired brightness.
1- To increase brightness
2- To reduce brightness
