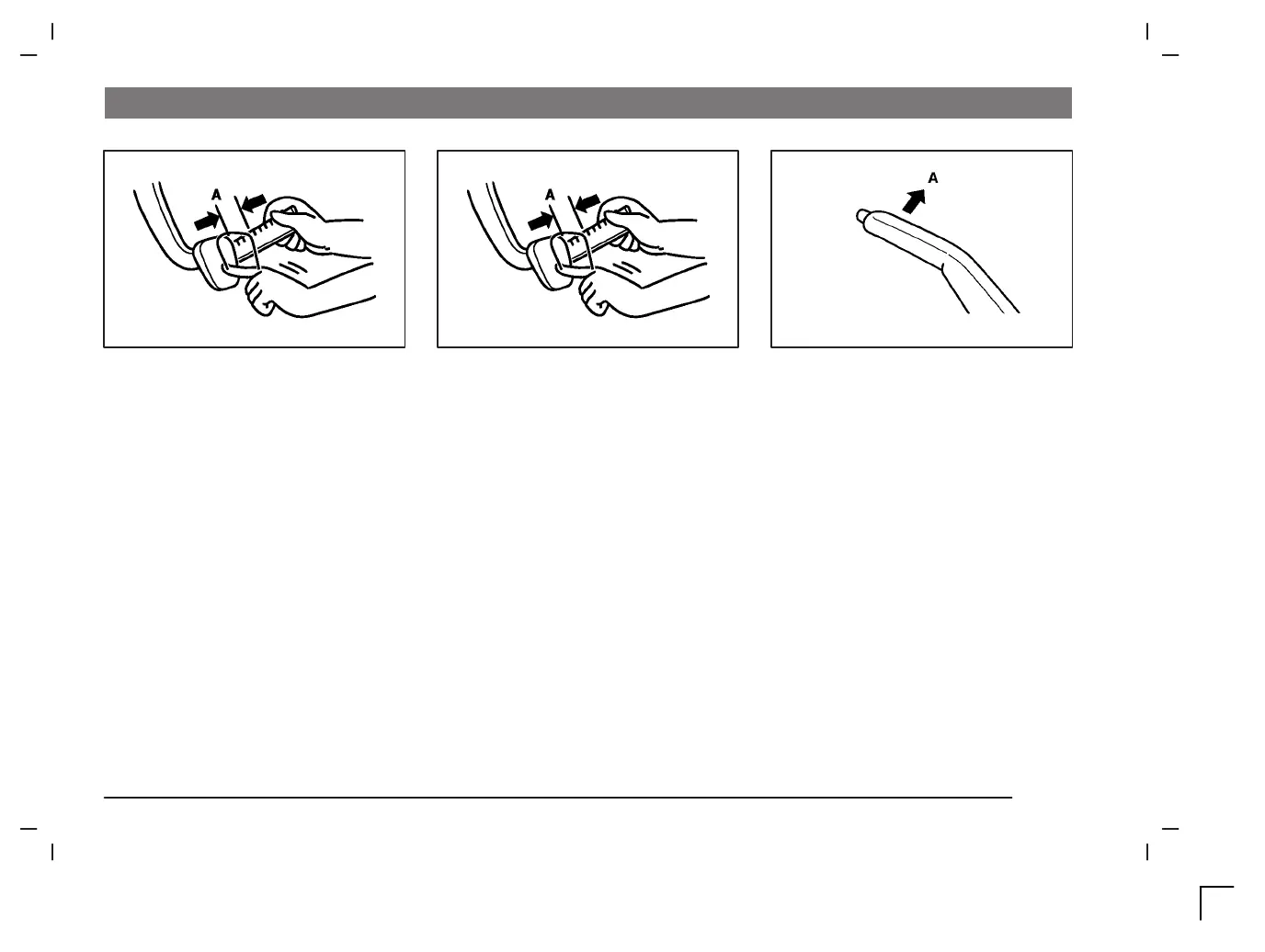

Clutch pedal free play*
EM17A-Ya
Press down the clutch pedal with your
fingers until initial resistance is felt.
This distance should be within the specified
range.
A- Free play: 6 to 13 mm
If the clutch pedal free play is not within the
standard range, have the clutch pedal ad-
justed at an authorized MITSUBISHI dealer.
M18A011a
Brake pedal free play
EM18A-Ga
Stop the engine, depress the brake pedal
several times, and press down the pedal
with your fingers until initial resistance is felt.
This distance should be within the specified
range.
A- Free play: 3 to 8 mm
If the brake pedal free play is not within the
standard range, have the brake pedal ad-
justed at an authorized MITSUBISHI dealer.
I27A085a
Parking brake lever stroke
EM19A–Xd
Pull the parking brake lever up to check the
number of ”clicks” that the ratchet makes.
One click represents a lever movement of
one notch. The lever should move the speci-
fied number of notches for normal brake ap-
plication.
A- Parking brake lever stroke
5 to 7 notches
(Parking brake adjustment when pulled
with the force of 200N)
If the parking brake lever stroke is out of the
standard range, have the brake lever ad-
justed at an authorized MITSUBISHI dealer.
