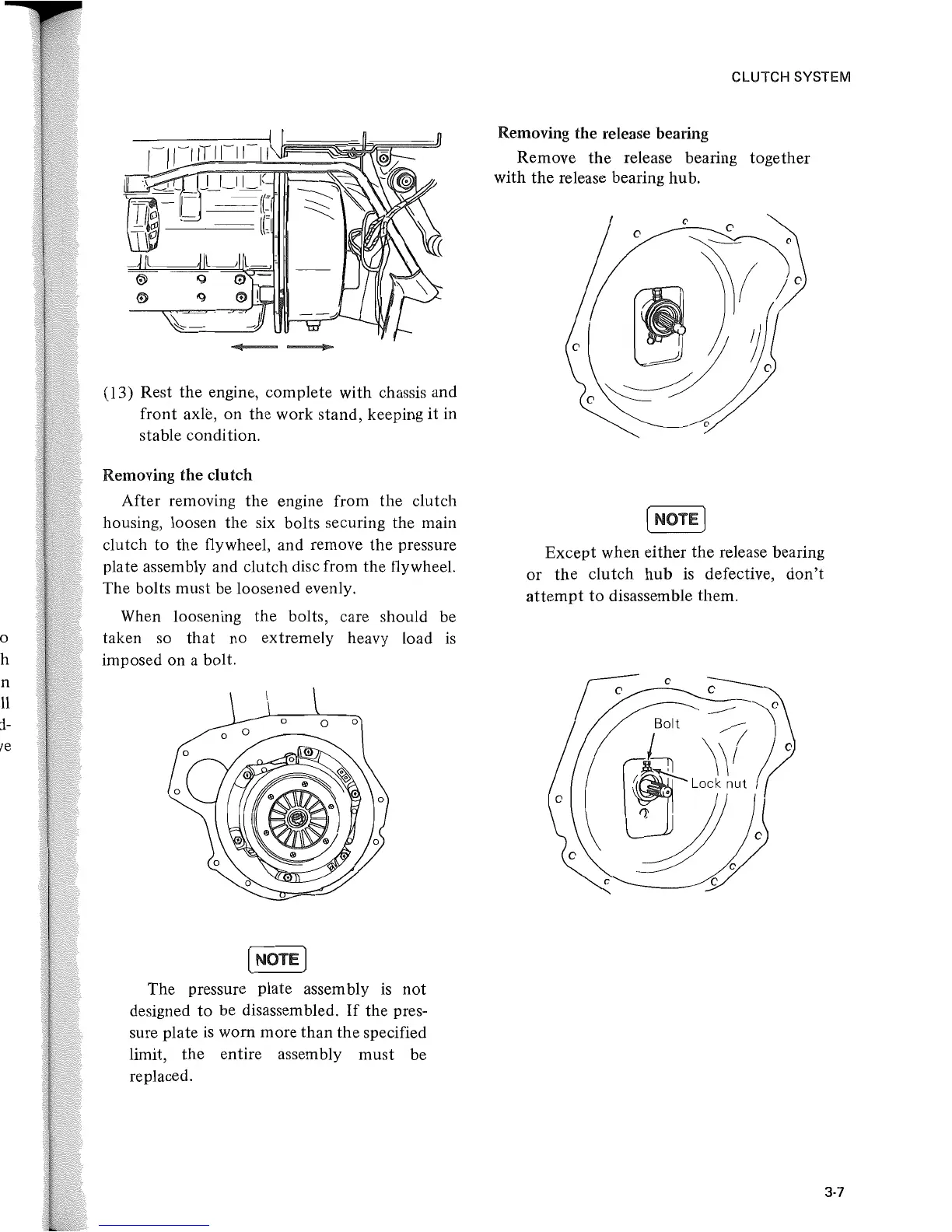

(13) Rest the engine, complete with chassis and
front axle,
on
the
work
stand, keeping
it
in
stable condition.
Removing
the
clutch
After removing the engine from
the
clutch
housing, loosen the six bolts securing the main
clutch
to
the
flywheel, and remove
the
pressure
plate assembly and clutch disc from the flywheel.
The bolts must be loosened evenly.
When loosening
the
bolts, care should be
taken so
that
no extremely heavy load
is
imposed on a bolt.
[NOTE]
The pressure plate assembly
is
not
designed
to
be disassembled.
If
the pres-
sure plate
is
worn more
than
the
specified
limit,
the
entire assembly must be
replaced.
CLUTCH SYSTEM
Removing the release bearing
Remove
the
release bearing together
with
the
release bearing hub.
[NOTE)
Except when either
the
release bearing
or
the
clutch
hub
is
defective,
don't
attempt
to
disassemble them.
c
c
-------
Bolt
~
i~
\\(
~~"'
C'
c
3-7
