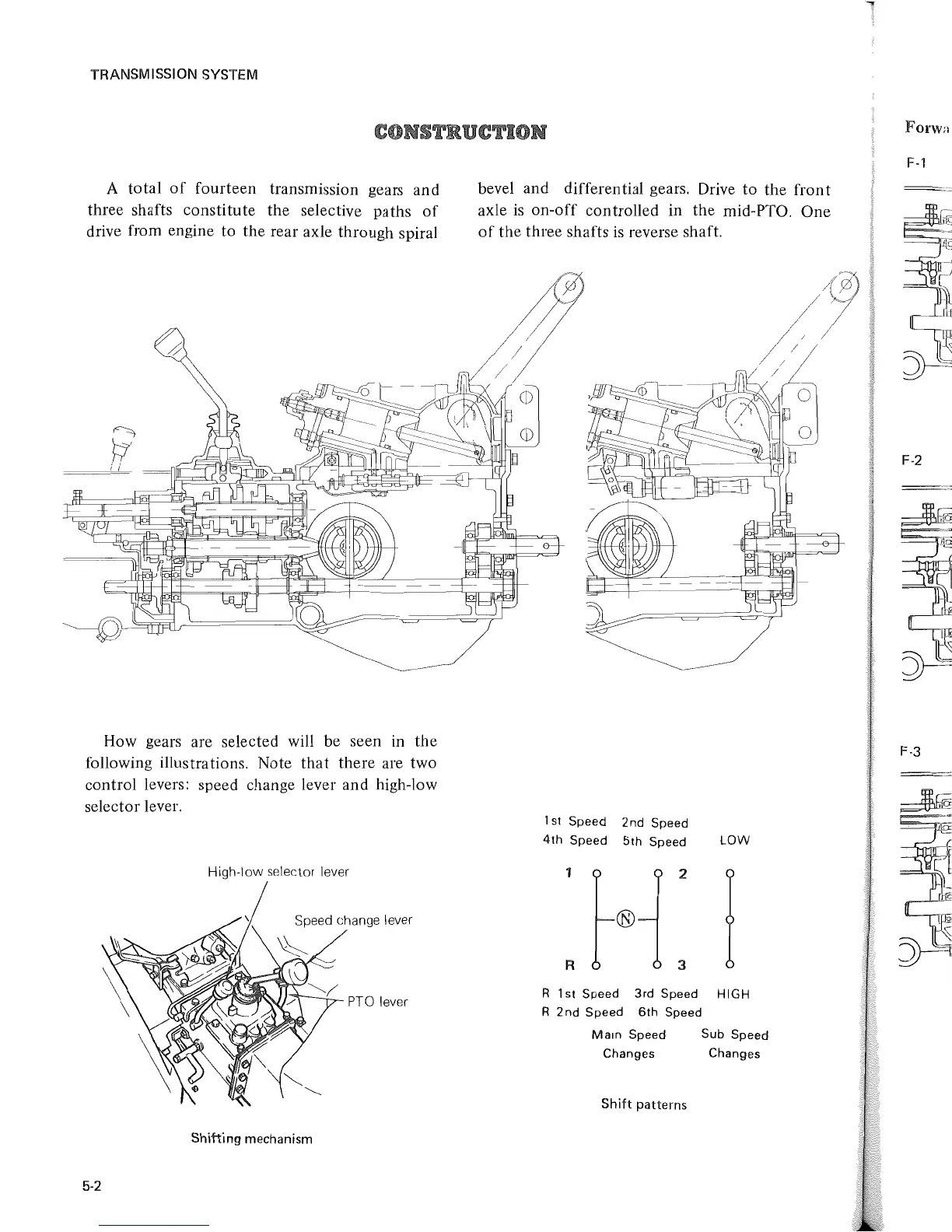

TRANSMISSION
SYSTEM
A total
of
fourteen transmission gears
and
three shafts
constitute
the selective paths
of
drive from engine
to
the rear axle through spiral
How gears are selected will be seen in
the
following illustrations. Note
that
there are two
control levers: speed change lever and high-low
selector lever.
High-low
selector lever
Speed change lever
Shifting
mechanism
5-2
bevel and differential gears. Drive to the
front
axle
is
on-off controlled in the mid-PTO. One
of
the three shafts
is
reverse shaft.
1
st
Speed 2nd Speed
4th
Speed 5th Speed LOW
1
2
®
R 3
R 1
st
Speed 3rd Speed HIGH
R 2nd Speed
6th
Speed
Main
Speed
Changes
Shift
patterns
Sub Speed
Changes
FOl'W;lI
F-1
F-2
F-3
