10 TRANSPORTATION
Mitsubishi Diesel Engine S12R
OPERATION & MAINTENANCE MANUAL
177
Pub. No. 291Y1-40720 Revision: 5

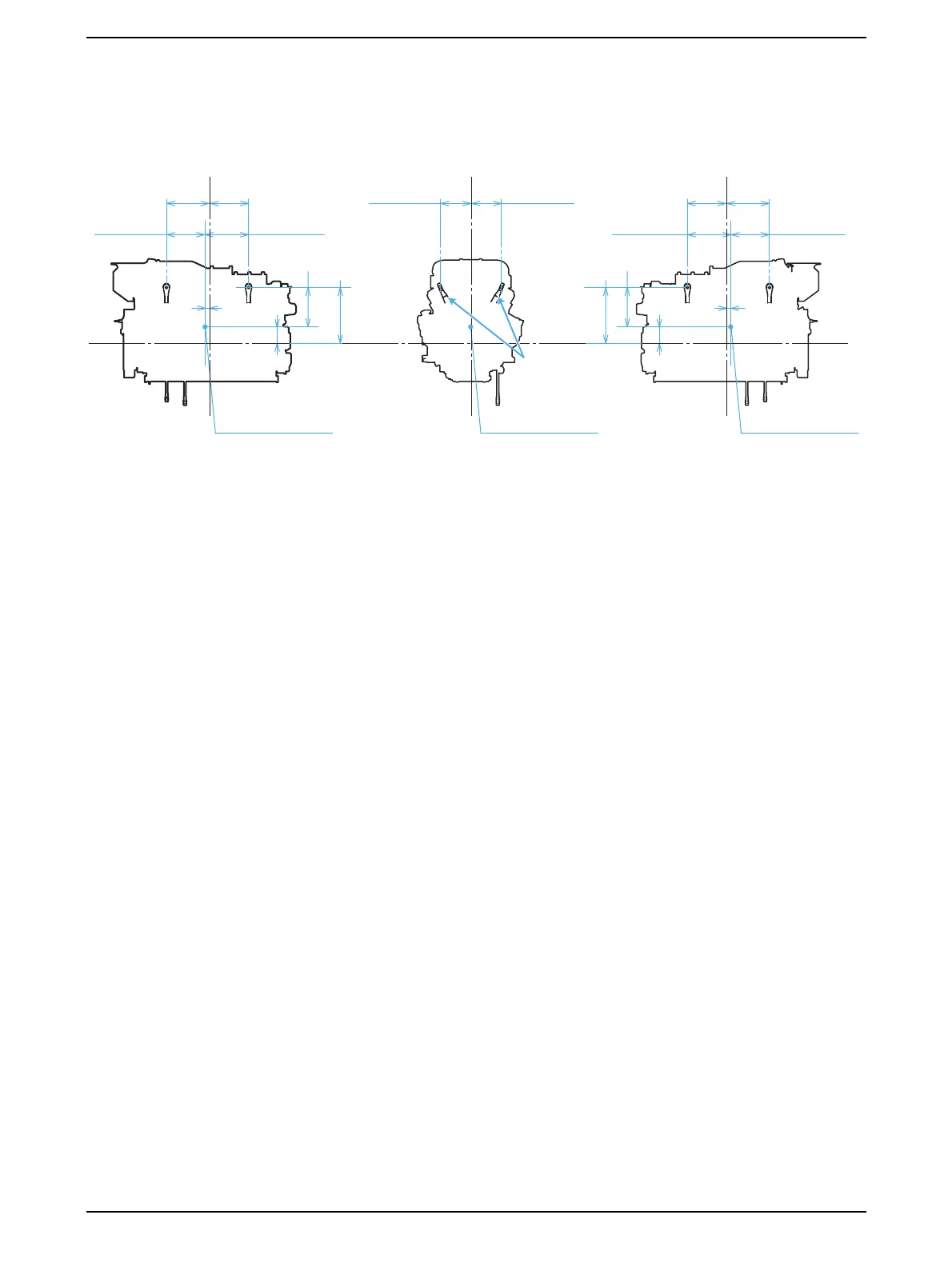

Fig. 10-1 Engine's Center of Gravity
Right Side View
Engine Front View
Left Side View
Crankshaft
Center
Center of Gravity
Center of Gravity
Center of Gravity
Hanger
Center
60 mm
[2.36 in.]
60 mm
[2.36 in.]
563 mm
[22.17 in.]
557 mm
[21.93 in.]
503 mm
[19.80 in.]
557 mm
[21.93 in.]
503 mm
[19.80 in.]
497 mm
[19.57 in.]
443 mm
[17.44 in.]
617 mm
[24.29 in.]
512 mm
[20.16 in.]
512 mm
[20.16 in.]
722 mm
[28.43 in.]
722 mm
[28.43 in.]
210 mm
[8.27 in.]
210 mm
[8.27 in.]
457 mm
[17.99 in.]
457 mm
[17.99 in.]
176
178
