Adaptive AP
10-13

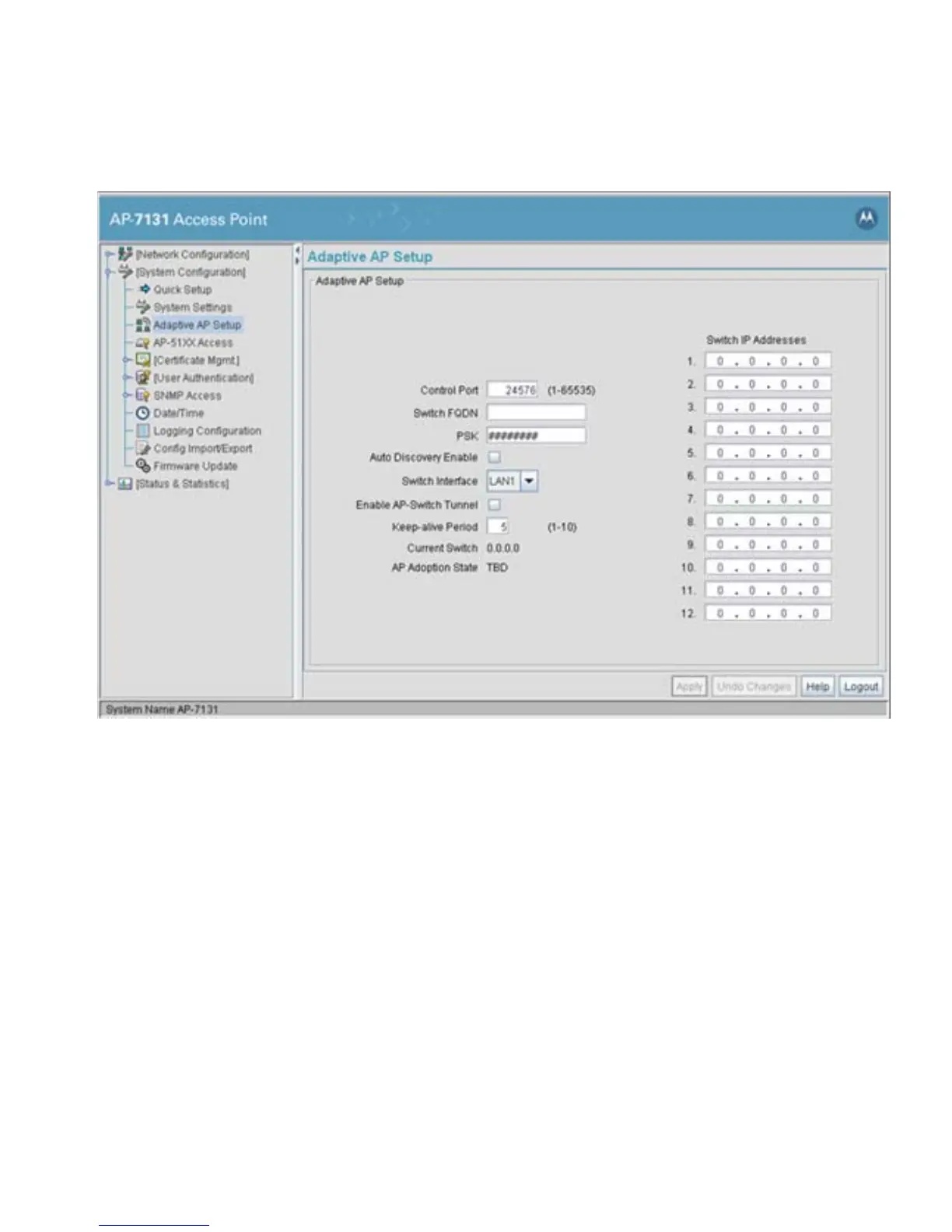

2. Select the Auto Discovery Enable checkbox.
Enabling auto discovery will allow the AAP to be detected by a switch once its connectivity
medium has been configured (by completing steps 3-6)
3. Enter up to 12 Switch IP Addresses constituting the target switches available for AAP
connection.
The AAP will begin establishing a connection with the first addresses in the list. If
unsuccessful, the AP will continue down the list (in order) until a connection is established.
4. If a numerical IP address is unknown, but you know a switch’s fully qualified domain name
(FQDN), enter the name as the Switch FQDN value.
5. Select the Enable AP-Switch Tunnel option to allow AAP configuration data to reach a
switch using a secure VPN tunnel.
6. If using IPSec as the tunnel resource, enter the IPSec Passkey to ensure IPSec connectivity.
