Radio Disassembly Ñ Detailed 2-5
6.0 Radio Disassembly Ñ Detailed
6.1 Front Cover from Chassis Disassembly
1. Turn off the radio.
2. Remove the battery:
a. Slide the battery clasp away from the radio (see ÒFigure 2-1Ó).
b. Slide battery down and away from radio.
3. Remove the antenna.
4. Pull the On/Off Volume knob off of its shaft.
5. Remove the two screws at the back of the rear chassis (see ÒFigure 2-2Ó).
6. Insert a small ßat-head screw driverÊat the bottom of the radio, between the chassis and
housingÊ(location marked in "Figure 2.2"), and lift the chassis gently. Be careful not to damage

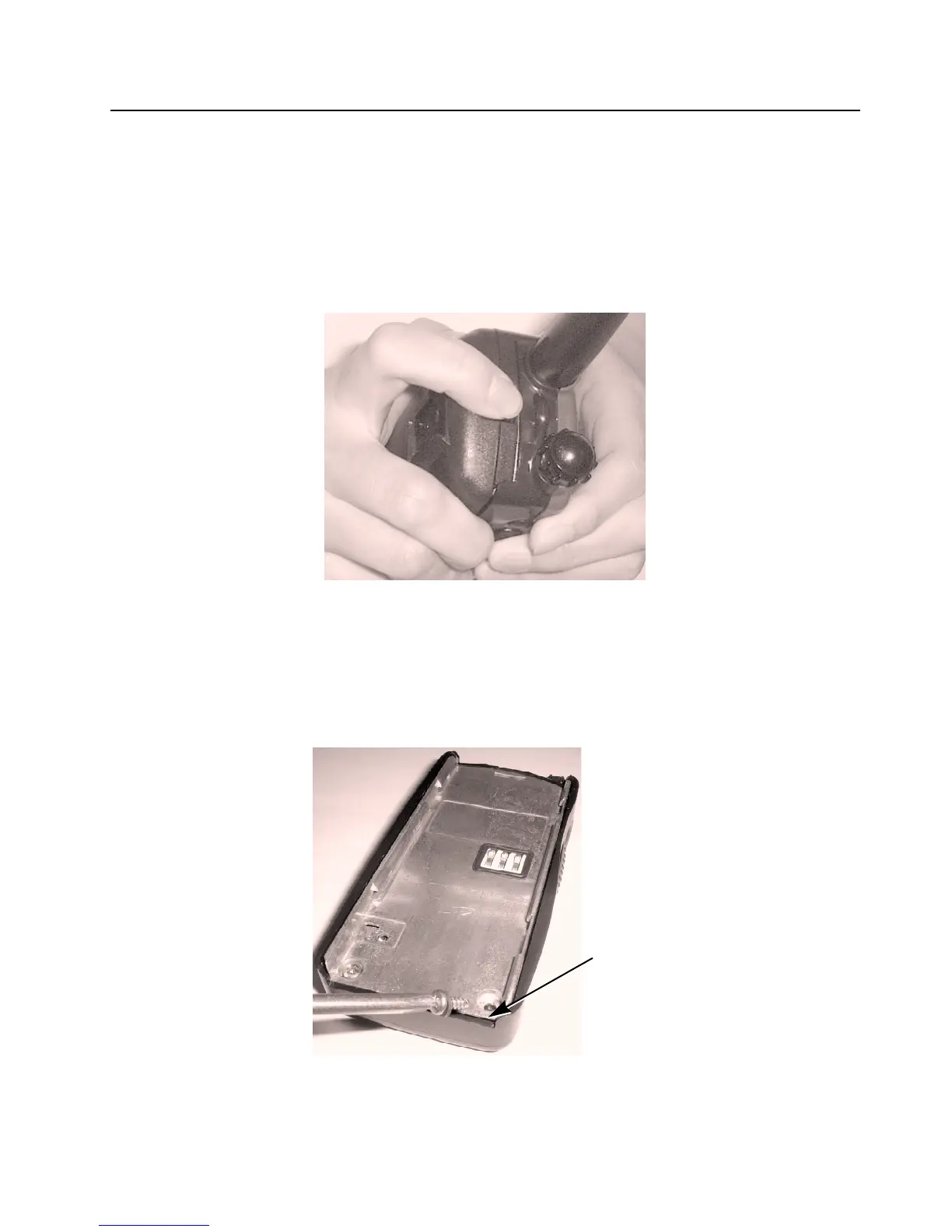

Figure 2-1
Figure 2-2
Insert screwdriver here
to remove chasis.
