43
PROGRAMMING FEATURES
• Wait until the radio stops at the channel you wish
to eliminate. Long press the SB2 button to delete
it. You cannot delete the channel with scan
enabled (home channel).
• The channel will not be scanned again until you
exit the Scan mode by short pressing the SB1 or
SB2 (programmed for scan) button again or by
turning OFF the radio and back ON.
CUSTOMER PROGRAMMING SOFTWARE
(CPS)

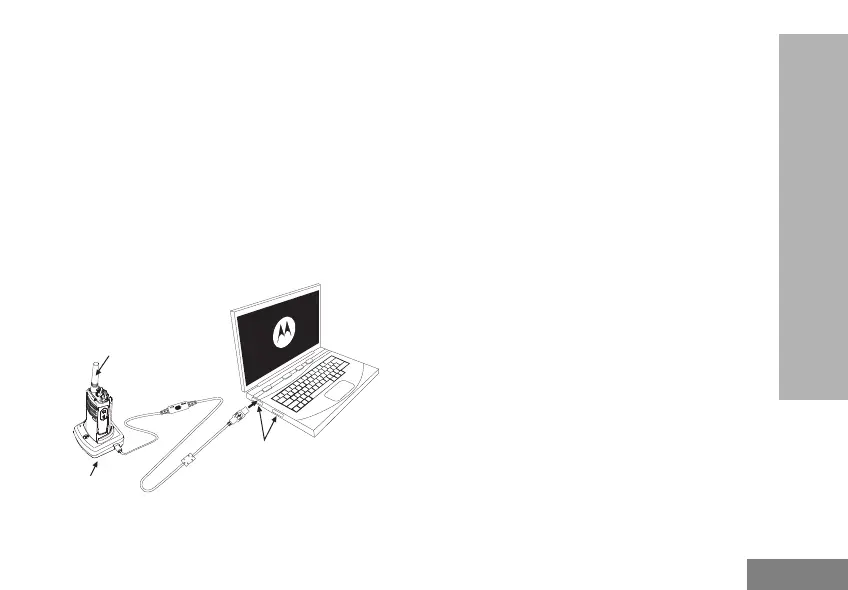

Figure 1: Setting up the radio to the CPS
The easiest way to program or change features in
your radio is by using the Customer Programming
Software (CPS) and the CPS Programming Cable(*).
CPS Software is available for free as web based
downloadable software at:
www.motorolasolutions.com/RDX
To program, connect the RM Series radio via the
Drop-in Charger Tray and CPS Programming Cable
as shown in Figure 1 on page 43. Toggle the cable
switch of the CPS Programming Cable to ‘CPS
Mode’.
CPS allows you to program frequencies, PL/DPL
Codes as well as other features such as: Bandwidth
Select, Time-out Timer, Power Select, Scan List, Call
Tones, Scramble, Reverse Burst, etc. CPS is a very
useful tool as it can also lock the Front-Panel Radio
Programming or restrict any specific radio feature to
be changed (to avoid accidentally erasing the preset
radio values). It also provides security by giving the
option to set up a password for profile radio’s
management. For more information, refer to Features
Summary Chart Section at the end of the User Guide.
Note: (*) CPS Programming Cable P/N#
HKKN4027_ is an accessory sold
separately. Please contact your Motorola
Drop-In Tray Charger Tray
Radio to be
programmed
USB Ports
CPS Programming Cable
MN002895A01_final.book Page 43 Thursday, January 5, 2017 10:51 AM
