2.3 Memory Installation
2.3-1 Memory Bank Configuration
The mainboard supports a maximum memory size of 512MB (8M x 8) or 1G
(16M x 4) registered DIMM for SDRAM: It provides four 168-pin
unbuffered DIMMs (Double In-Line Memory Module) sockets. It supports
8 MB to 256 Mbytes DIMM memory module.

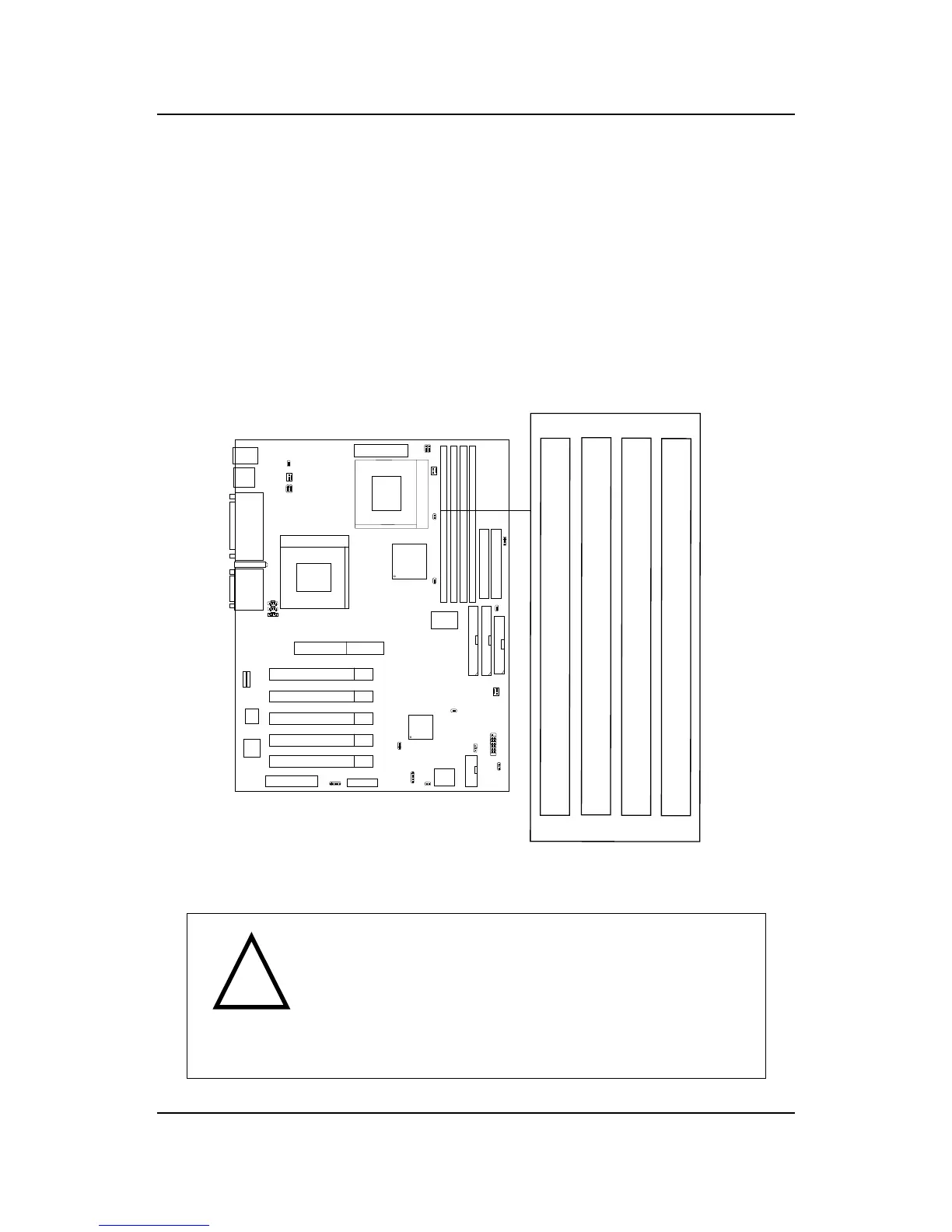

DIMM1(Bank0+ Bank1)
DIMM2(Bank2+ Bank3)
DIMM3(Bank4+ Bank5)
There are three kinds of DIMM specification supported
by this mainboard: PC133, PC100 and PC66. If you
use 66MHz CPU Bus Frequency, these four DIMM
Specs. is supported. If you use 100 MHz CPU Bus
Frequency, only PC100 DIMM Specs. is supported.If
you use 133 MHz CPU Bus Frequency, only PC133
DIMM Specs. is supported.
!
WARNING!
DIMM4(Bank6+ Bank7)
