2-11
Hardware Setup

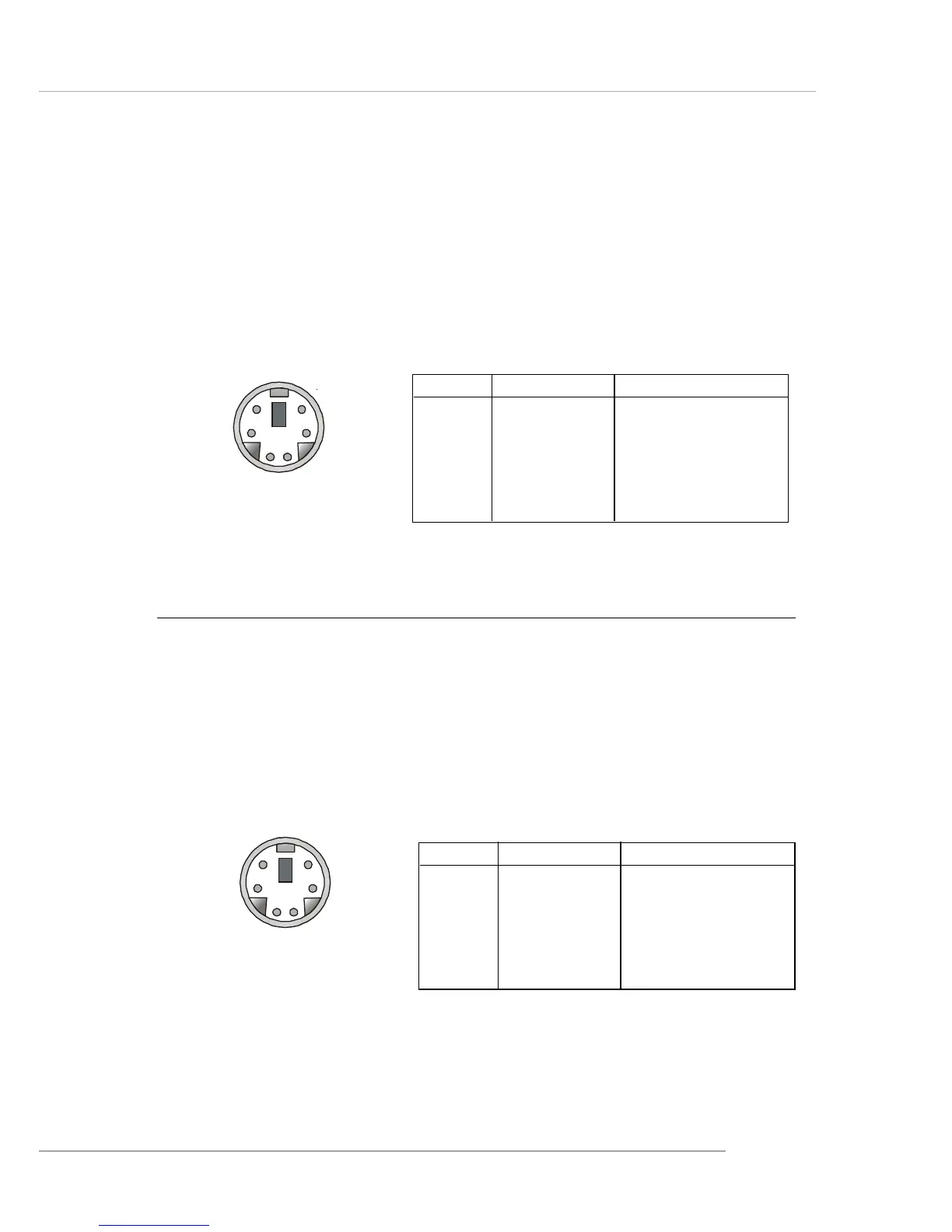

Keyboard Connector
The mainboard provides a standard PS/2
®
keyboard mini DIN connec-
tor for attaching a PS/2
®
keyboard. You can plug a PS/2
®
keyboard directly
into this connector.
PIN SIGNAL DESCRIPTION
1 Keyboard DATA Keyboard DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Keyboard Clock Keyboard clock
6 NC No connection
Pin Definition
PS/2 Keyboard (6-pin Female)
2
1
3
4
5
6
Mouse Connector
The mainboard provides a standard PS/2
®
mouse mini DIN connector
for attaching a PS/2
®
mouse. You can plug a PS/2
®
mouse directly into this
connector. The connector location and pin assignments are as follows:
PIN SIGNAL DESCRIPTION
1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection
Pin Definition
PS/2 Mouse (6-pin Female)
2
1
3
4
5
6
