Hardware Setup

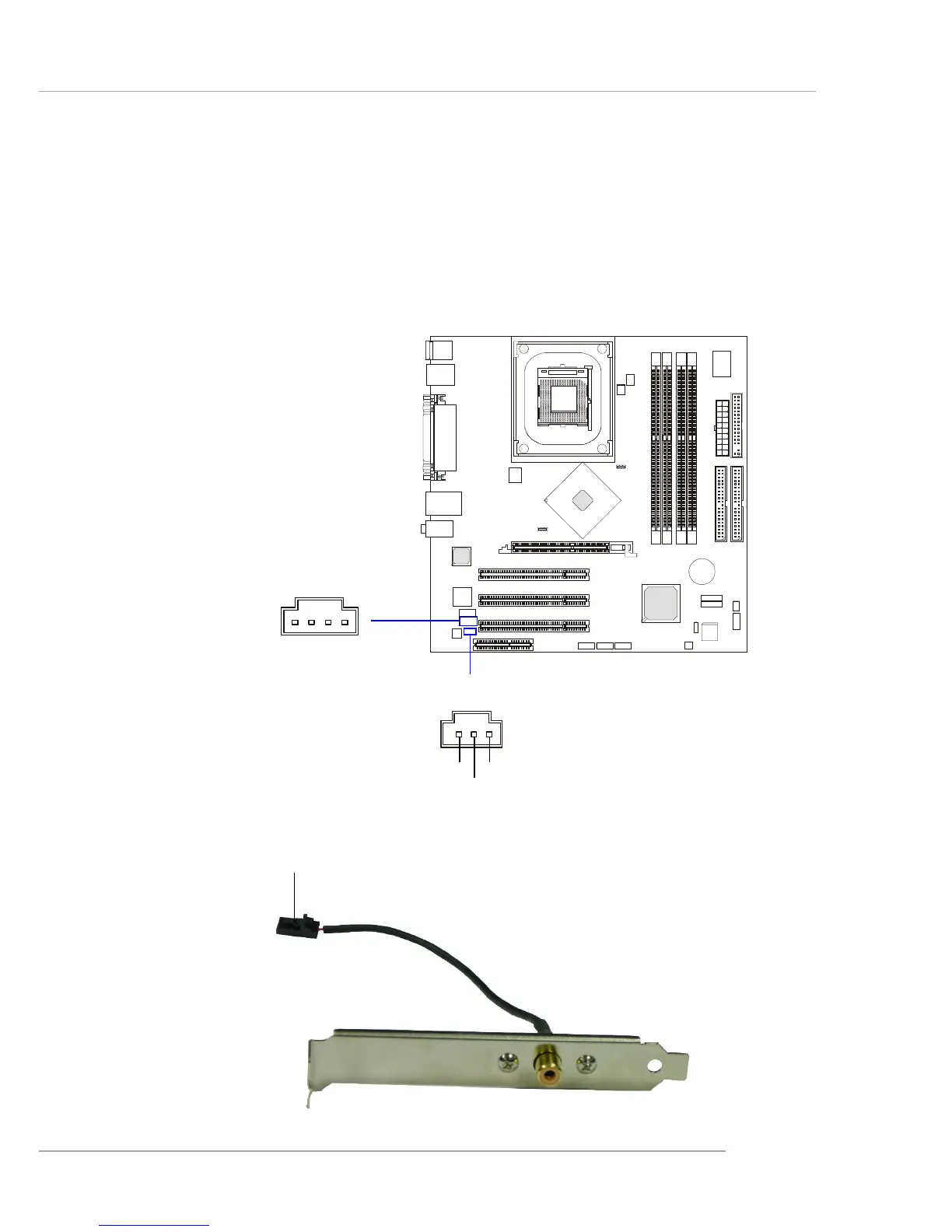

CD-In Connector: JCD1

The connector is for CD-ROM audio connector.

SPDIF-Out Connector: JSPD1 (Optional)

This connector is used to connect SPDIF (Sony & Philips Digital Inter-

connect Format) interface for digital audio transmission.

JCD1

JSPD1

VCC

SPDIF

GND

Connected to JSPD1

SPDIF Bracket (Optional)
