MS-6743 M-ATX Mainboard
After installing the audio driver, you are able to use the 4-/6-channel audio
feature now. To enable 4- or 6-channel audio operation, first connect 4 or 6
speakers to the appropriate audio connectors, and then select 4- or 6-channel
audio setting in the software utility.
After installing the C-Media drivers, you can attach the speakers for 4-/6-
channel audio output. Always connect the speakers to the LINE OUT
connectors. Different connector configurations for 2-/4-/6-channel operations
are listed below:

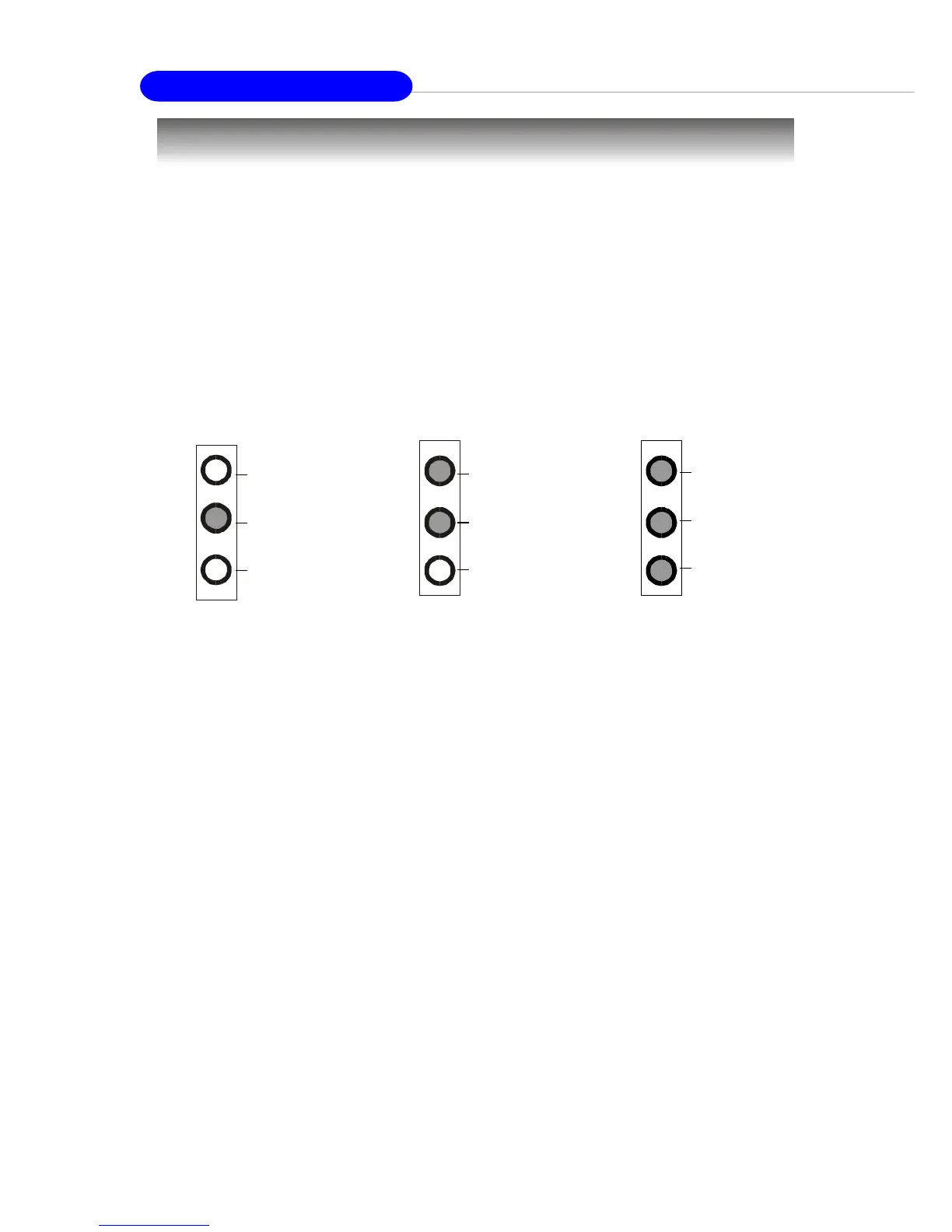

Hardware Configuration
2-Channel
In 2-channel configuration,
Line Out, Line In and MIC
functions all exist.
4-Channel 6-Channel
When set to 4-channel
configuration, LINE IN
function DOES NOT
WORK any more.
When set to 6-channel
configuration, LINE IN
and MIC functions DO
NOT WORK anymore.
MIC
Line In
Line Out
MIC
Line Out
Line In
MIC
Line Out
Line In
