MSI B360M PRO-VH User Manual

10
I/O

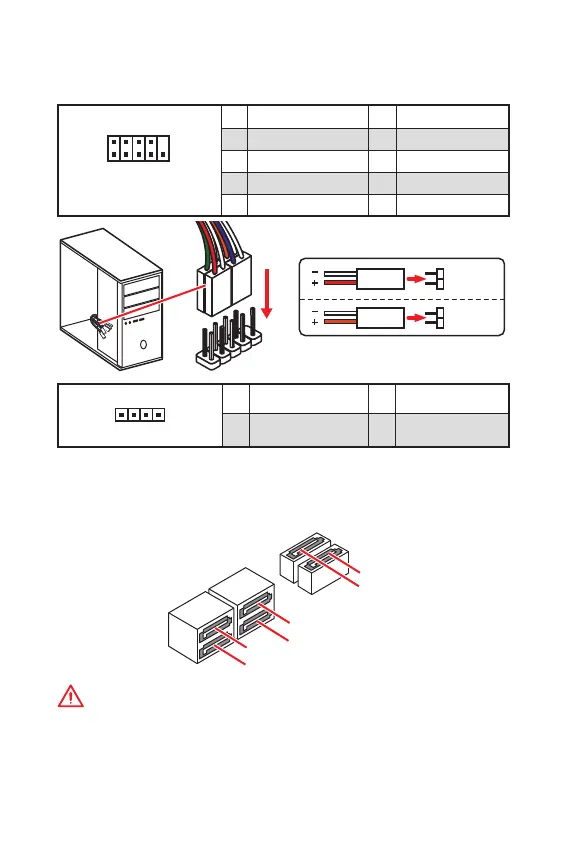

SATA1~6: SATA 6Gb/s
 SATA 6Gb/s 󱘈
󱘈 SATA 󳰛󶪔
SATA3
SATA5
SATA4
SATA1
SATA2
SATA6
󴱄󳞱
y SATA 90󳍿󱝤󱘕󸋍󳍿󳩵󴇝󳳇󲢀󸤒󳙫

y SATA󱘷󶔏󱿻󱘈󱨵󵏎󶃘󱣤
 󳰛 󶪔󷬥 
JFP1JFP2: 
LED󳰛 󶪔
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
1
JFP2
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
HDD LED
RESET SW
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
JFP1

MSI B360M PRO-VH Specifications

General

Form Factor	Micro-ATX
Chipset	Intel B360
Socket	LGA 1151
Memory Slots	2 x DIMM
Maximum Memory	32 GB
PCIe x16 Slots	1
M.2 Slots	1
Audio	Realtek ALC887
LAN	Realtek 8111H Gigabit LAN
RAID Support	No
Memory Speed	DDR4-2666/2400/2133 MHz
SATA Ports	4 x SATA 6Gb/s
USB 2.0 Ports	4
PCIe x1 Slots	2
