MSI B360M PRO-VH User Manual

12
I/O

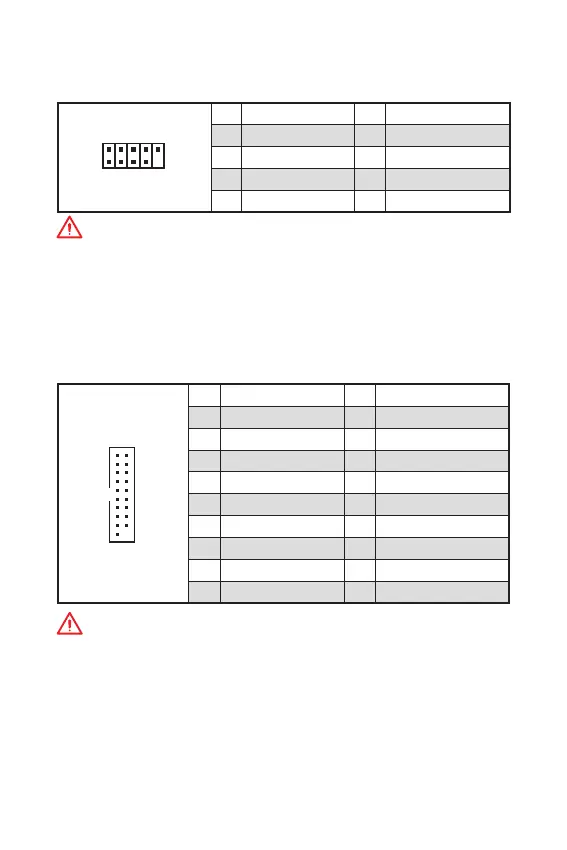

JUSB3: USB 3.1 Gen1
USB 3.1 Gen1󳰙 󶪓
1
10
11
20
1 Power 11 USB2.0+
2 USB3_RX_DN 12 USB2.0-
3 USB3_RX_DP 13 Ground
4 Ground 14 USB3_TX_C_DP
5 USB3_TX_C_DN 15 USB3_TX_C_DN
6 USB3_TX_C_DP 16 Ground
7 Ground 17 USB3_RX_DP
8 USB2.0- 18 USB3_RX_DN
9 USB2.0+ 19 Power
10 NC 20 No Pin
󴱄󳞱
󹧖󴻢󳖔󳰛󶪔󴦜󳰛󶪔󲛆󱿷󴟆󲏝󳳇󱩫
 
JUSB1JUSB2: USB 2.0
USB 2.0󳰙 󶪓
1
2 10
9
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
󴱄󳞱
y VCC󳖔󳰛󶪔󴦜󳰛󶪔󲛆󱿷󴟆󲏝
󳳇󱩫
y USB iPadiPhoneiPod󱯥󱭮󹧖 MSI
®
SUPER CHARGER
     

MSI B360M PRO-VH Specifications

General

Form Factor	Micro-ATX
Chipset	Intel B360
Socket	LGA 1151
Memory Slots	2 x DIMM
Maximum Memory	32 GB
PCIe x16 Slots	1
M.2 Slots	1
Audio	Realtek ALC887
LAN	Realtek 8111H Gigabit LAN
RAID Support	No
Memory Speed	DDR4-2666/2400/2133 MHz
SATA Ports	4 x SATA 6Gb/s
USB 2.0 Ports	4
PCIe x1 Slots	2
