Overview of Components
* For Ryzen™ 1st and 2nd Generation processors
** For Ryzen™ with Radeon™ Vega Graphics processors
*** For Athlon™ with Radeon™ Vega Graphics processors
Important
y
If you install a large and heavy graphics card, you need to use a tool such as MSI
Gaming Series Graphics Card Bolster to support its weight to prevent deformation of
the slot.
y
When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
cards documentation to check for any necessary additional hardware or software
changes.

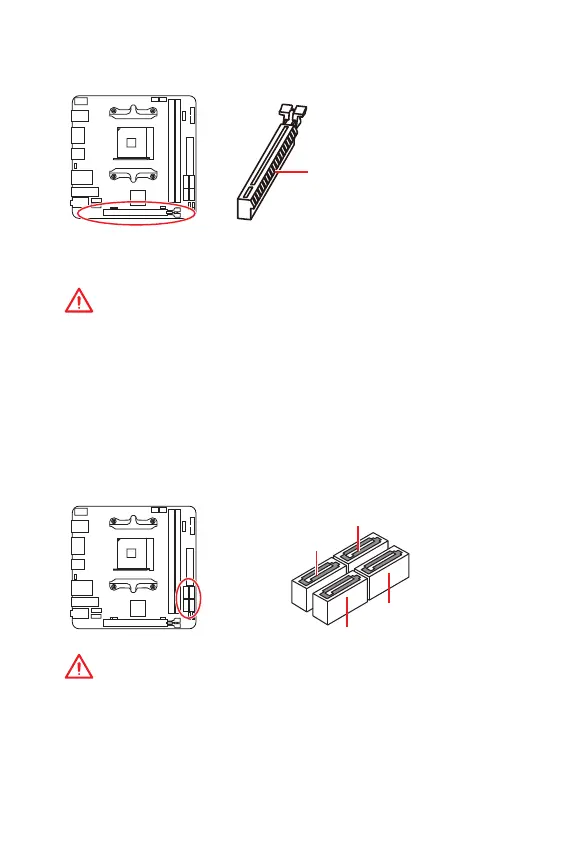

PCI_E1: PCIe Expansion Slot
PCI_E1 (CPU lanes):
PCIe 3.0 x16*/ PCIe x8 **/ PCIe x4***
SATA1~4: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
Important
y
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
y
SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
SATA3
SATA4
SATA1
SATA2
To Next Page
