MSI B450I GAMING PLUS AC User Manual

57
Software Description

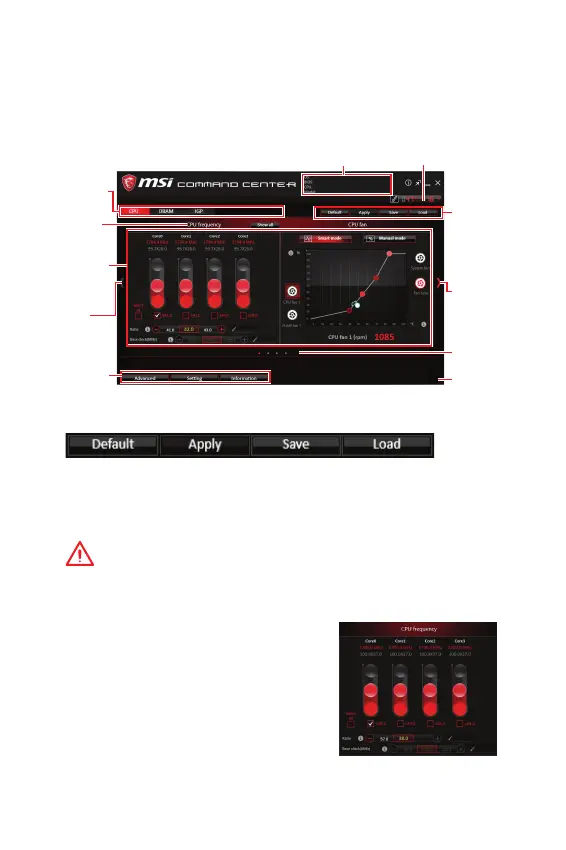

COMMAND CENTER
COMMAND CENTER is an user-friendly software and exclusively developed by MSI,
helping users to adjust system settings and monitor status under OS. With the help
of COMMAND CENTER, making it possible to achieve easier and efficient monitoring
process and adjustments than that under BIOS. In addition, the COMMAND CENTER
can be a server for mobile remote control application.
Feature Menu
CPU TemperatureSystem Information
Feature Title
Feature
Control Panel
Previous
Feature
Next Feature
Profile
Buttons
Option Buttons
Page Indicator
Resize Corner
Profile Buttons
y Default - load the default values for the current feature.
y Apply - apply your changes.
y Save - store values in the file with individual file extension.
y Load - load the values from the file.
Important
Every time you shut down the system, the configured setting will be restored to the
factory default. If you want to use the saved settings, you have to load it every time by
clicking the Load and Apply buttons.
CPU Frequency
CPU Frequency control panel allows you to change
CPU Ratio and Base clock. You can see the current
frequency of each CPU core on the top of the panel.

MSI B450I GAMING PLUS AC Specifications

General

Form Factor	Mini-ITX
Chipset	AMD B450
Socket	AM4
Memory Slots	2
Maximum Memory	32 GB
Audio	Realtek ALC887
PCIe x16 Slots	1
SATA Ports	4
M.2 Slots	1
Video Outputs	1 x HDMI, 1 x DisplayPort
RAID Support	RAID 0, 1, 10
Memory Speed	DDR4 3466+(OC) MHz
LAN	Realtek 8111H Gigabit LAN
Wi-Fi	802.11 a/b/g/n/ac
USB Ports	4 x USB 2.0
Networking	Realtek 8111H Gigabit LAN
