MSI B450I GAMING PLUS AC User Manual

28
Overview of Components
M2_1: M.2 Slot (Key M)
Video Demonstration
Watch the video to learn how to use M.2
Shield.
https://youtu.be/NwtQBpkUazs

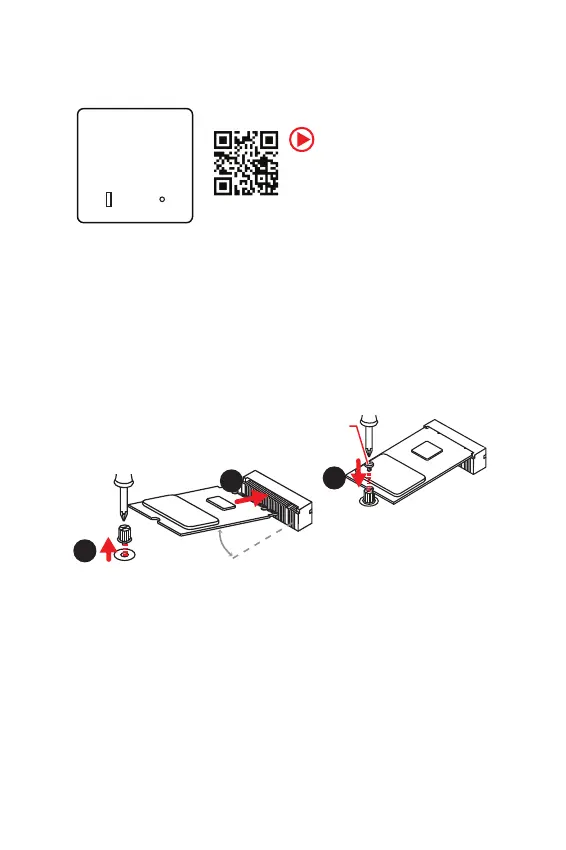

Installing M.2 SSD
1. Loosen the M.2 riser screw from the motherboard.
2. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
3. Secure the M.2 SSD in place with the supplied M.2 screw.
1
2
3
30o
Supplied
M.2 screw
Bottom view

MSI B450I GAMING PLUS AC Specifications

General

Form Factor	Mini-ITX
Chipset	AMD B450
Socket	AM4
Memory Slots	2
Maximum Memory	32 GB
Audio	Realtek ALC887
PCIe x16 Slots	1
SATA Ports	4
M.2 Slots	1
Video Outputs	1 x HDMI, 1 x DisplayPort
RAID Support	RAID 0, 1, 10
Memory Speed	DDR4 3466+(OC) MHz
LAN	Realtek 8111H Gigabit LAN
Wi-Fi	802.11 a/b/g/n/ac
USB Ports	4 x USB 2.0
Networking	Realtek 8111H Gigabit LAN
