19
1
Ground
PANEL_SW
12

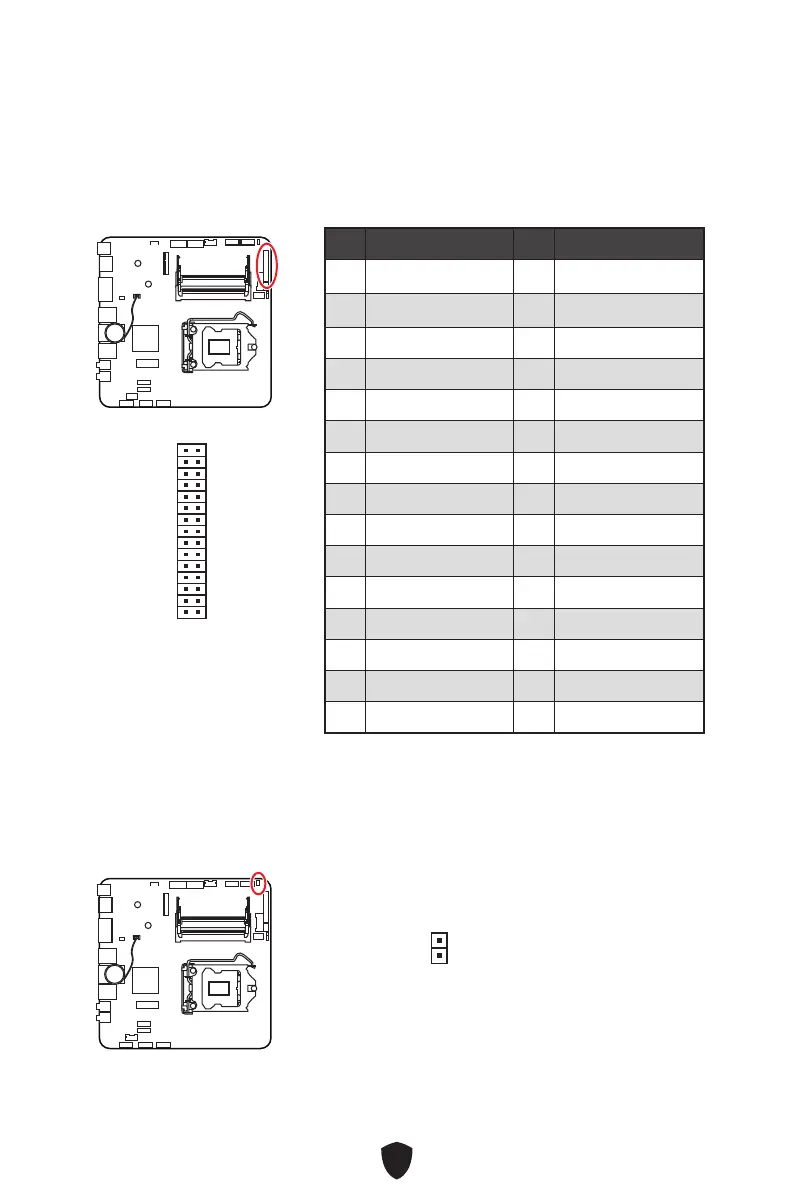

1 LCD_VDD 2 LCD_VDD
3 LCD_VDD 4 Ground
5 Ground 6 Ground
7 LVDSA_DATA0# 8 LVDSA_DATA0
9 LVDSA_DATA1# 10 LVDSA_DATA1
11 LVDSA_DATA2# 12 LVDSA_DATA2
13 Ground 14 Ground
15 LVDSA_CLK# 16 LVDSA_CLK
17 LVDSA_DATA3# 18 LVDSA_DATA3
19 LVDSA_DATA0# 20 LVDSA_DATA0
21 LVDSA_DATA1# 22 LVDSA_DATA1
23 LVDSA_DATA2# 24 LVDSA_DATA2
25 Ground 26 Ground
27 LVDSB_CLK# 28 LVDSB_CLK
29 LVDSB_DATA3# 30 LVDSB_DATA3
