16

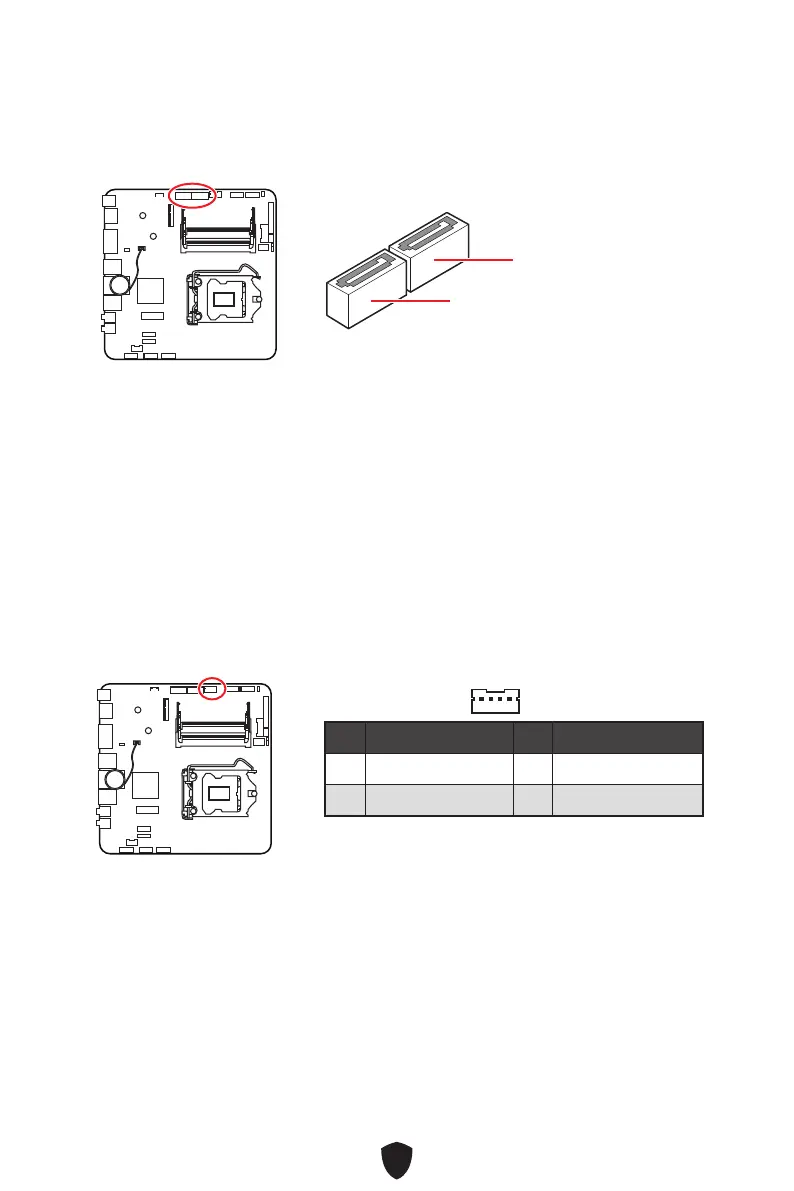

SATA5~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
Important
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
SATA5
SATA6
JHDDPWR1: SATA Power Connector
This connector is used to provide power to SATA devices.
1
Pin Signal Name Pin Signal Name
1 VCC5 2 Ground
3 Ground 4 +12V
