19

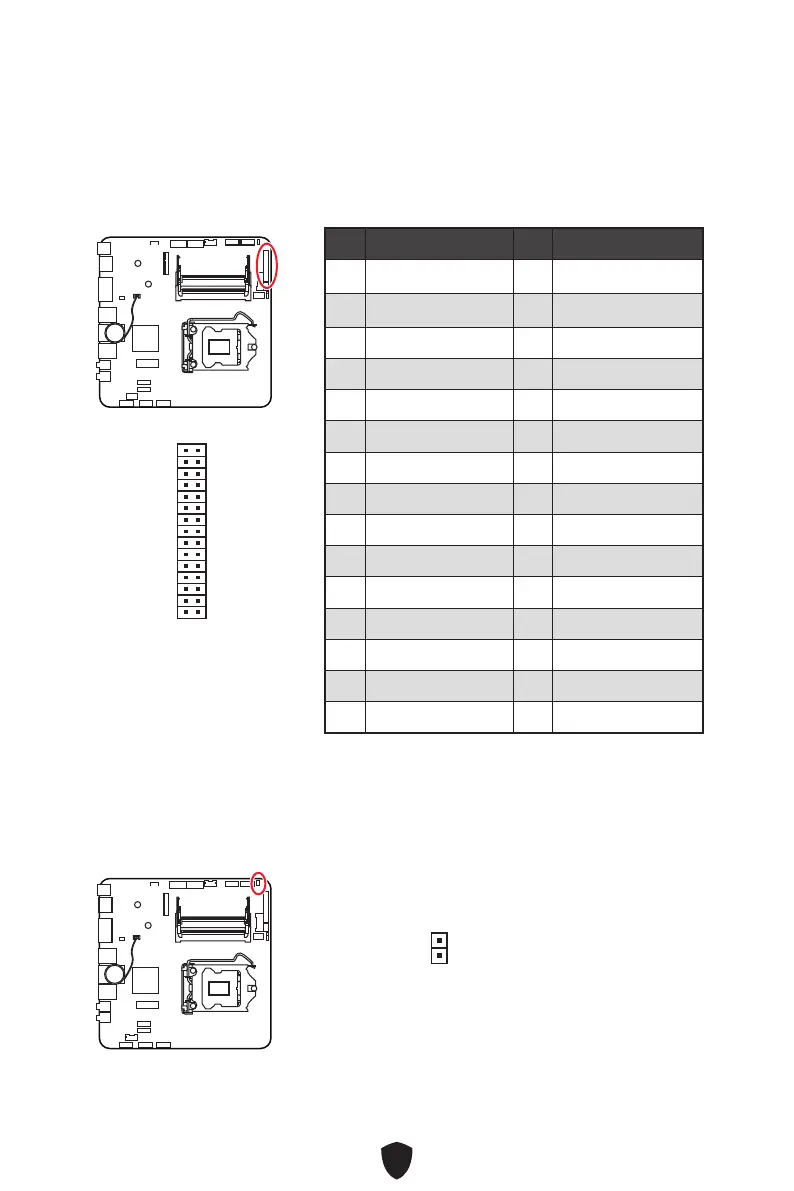

JPANELSW1: Panel Display Switch Connector
This connector is used to connect an on/ off switch for the panel display.
1
Ground
PANEL_SW
JLVDS1: LVDS Connector
The LVDS (Low Voltage Differential Signaling) connector provides a digital interface
typically used with flat panels. After connecting an LVDS interface flat panel to the
LVDS connector, be sure to check the panel datasheet and set the LVDS power
connector to the proper power voltage.
12
Pin Signal Name Pin Signal Name
1 LCD_VDD 2 LCD_VDD
3 LCD_VDD 4 Ground
5 Ground 6 Ground
7 LVDSA_DATA0# 8 LVDSA_DATA0
9 LVDSA_DATA1# 10 LVDSA_DATA1
11 LVDSA_DATA2# 12 LVDSA_DATA2
13 Ground 14 Ground
15 LVDSA_CLK# 16 LVDSA_CLK
17 LVDSA_DATA3# 18 LVDSA_DATA3
19 LVDSA_DATA0# 20 LVDSA_DATA0
21 LVDSA_DATA1# 22 LVDSA_DATA1
23 LVDSA_DATA2# 24 LVDSA_DATA2
25 Ground 26 Ground
27 LVDSB_CLK# 28 LVDSB_CLK
29 LVDSB_DATA3# 30 LVDSB_DATA3
To Next Page
