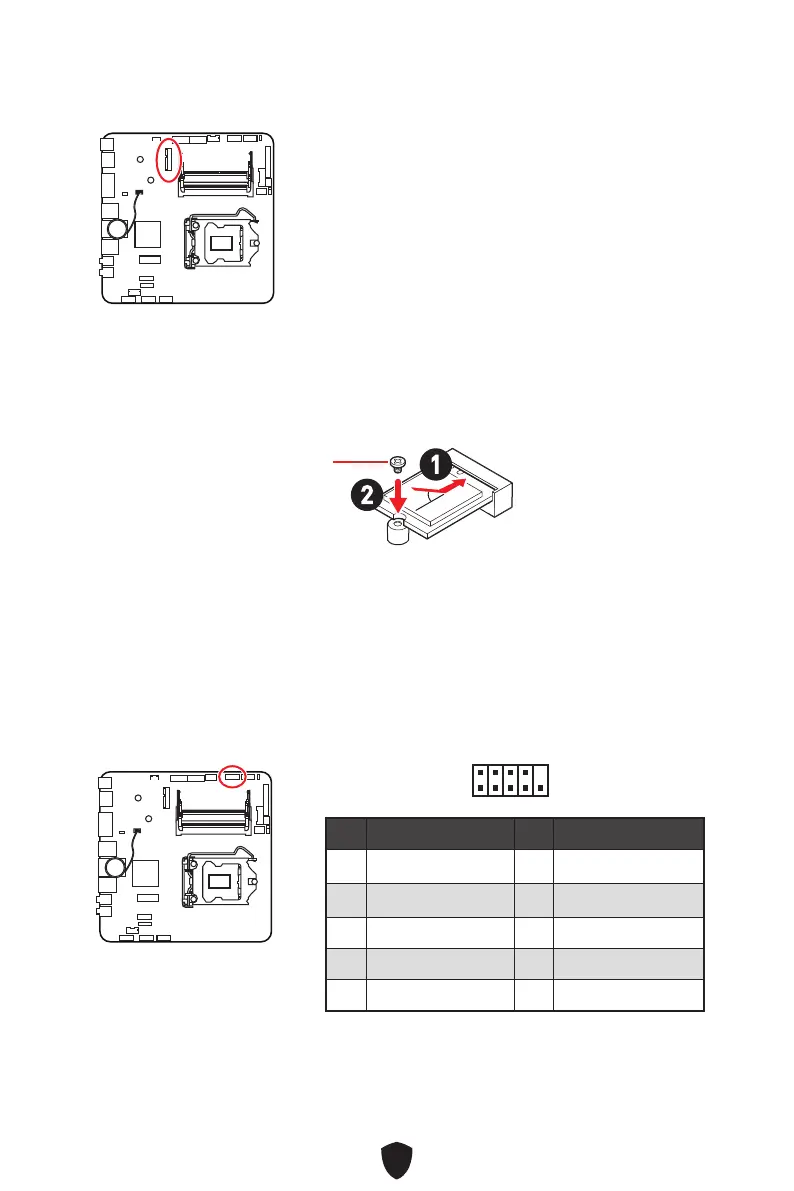

CNVI_1: M.2 Slot (Key E)
Please install the Wi-Fi module into CNVI_1 slot as shown below.
1. Insert your M.2 wifi card into the M.2 slot at a 30-degree angle.
2. Secure the M.2 wifi card in place with the supplied M.2 screw.
30º
30º
2
1
Supplied
M.2 screw
JCOM1: Serial Port Connector
This connector allows you to connect the optional serial port with bracket.
Pin Signal Name Pin Signal Name
1 DCD 2 SIN
3 SOUT 4 DTR
5 Ground 6 DSR
7 RTS 8 CTS
9 RI 10 No Pin
1
2 10
9
