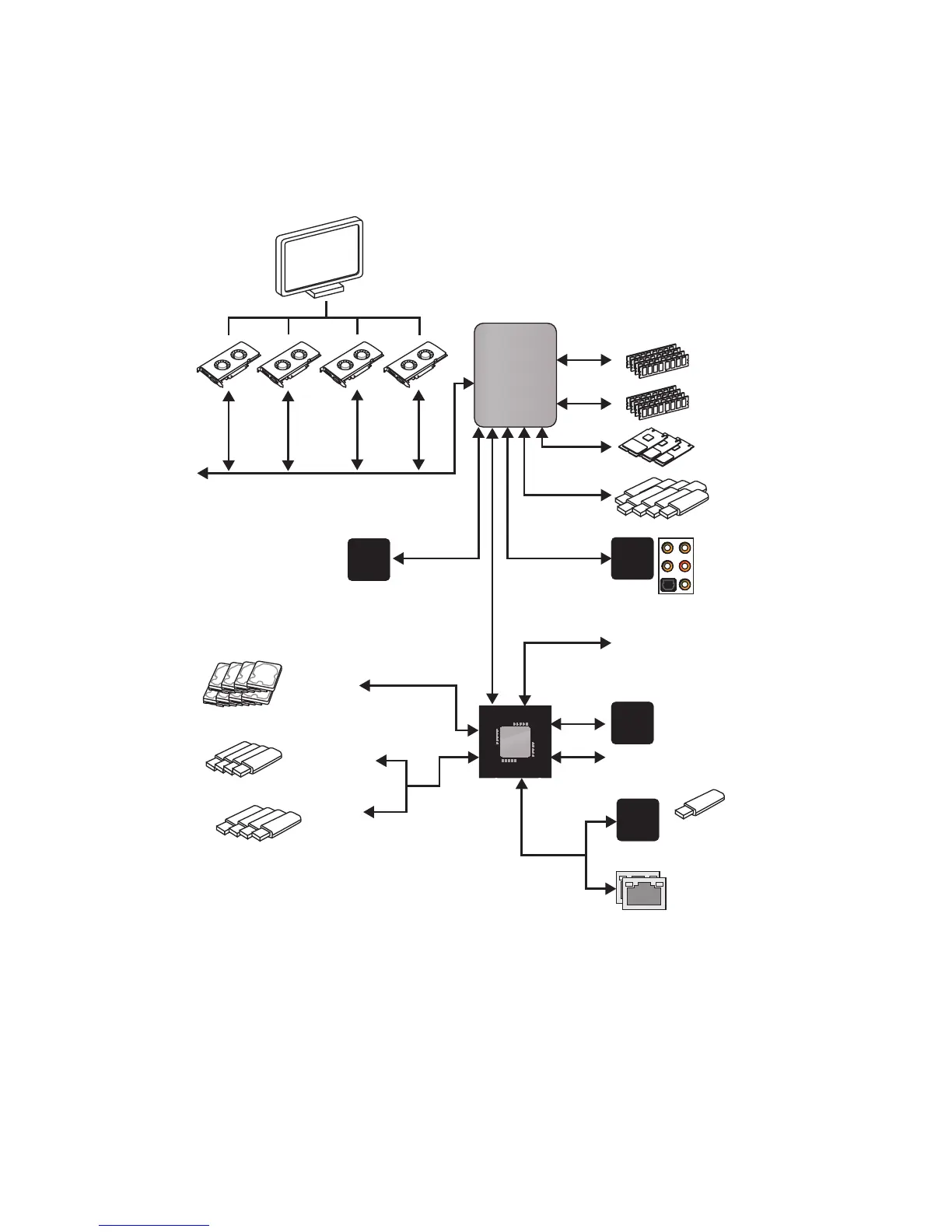

Block Diagram
Block Diagram
2/ 4 Channel DDR4 Memory
1x USB 3.1 Gen2
2x USB 3.1 Gen1
3x M.2
PCIE Bus
PCIE Bus
2x Intel I211
Gigabit LAN
DMI 3.0
PCI Express Bus
X399
Processor
NV6797
Super I/O
Realtek
ALC1220
Intel
9260 WiFi
8x SATA 6Gb/s
4x USB 3.1 Gen1
4x USB 2.0
8x USB 3.1 Gen1
PCIe x1 slot
ASMEDIA
ASM3142
Audio Jacks
