44
Overview of Components
24
131
12
ATX_PWR1
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS-ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
5
4
1
8
CPU_PWR1/
CPU_PWR2
1 Ground 5 +12V
2 Ground 6 +12V
3 Ground 7 +12V
4 Ground 8 +12V
Important
y
Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.
y
It is recommended that connect both CPU_PWR1 and CPU_PWR2 to 12V power
supply (especially when overclocking).
y
It is recommended to use a power supply with more than 500W.

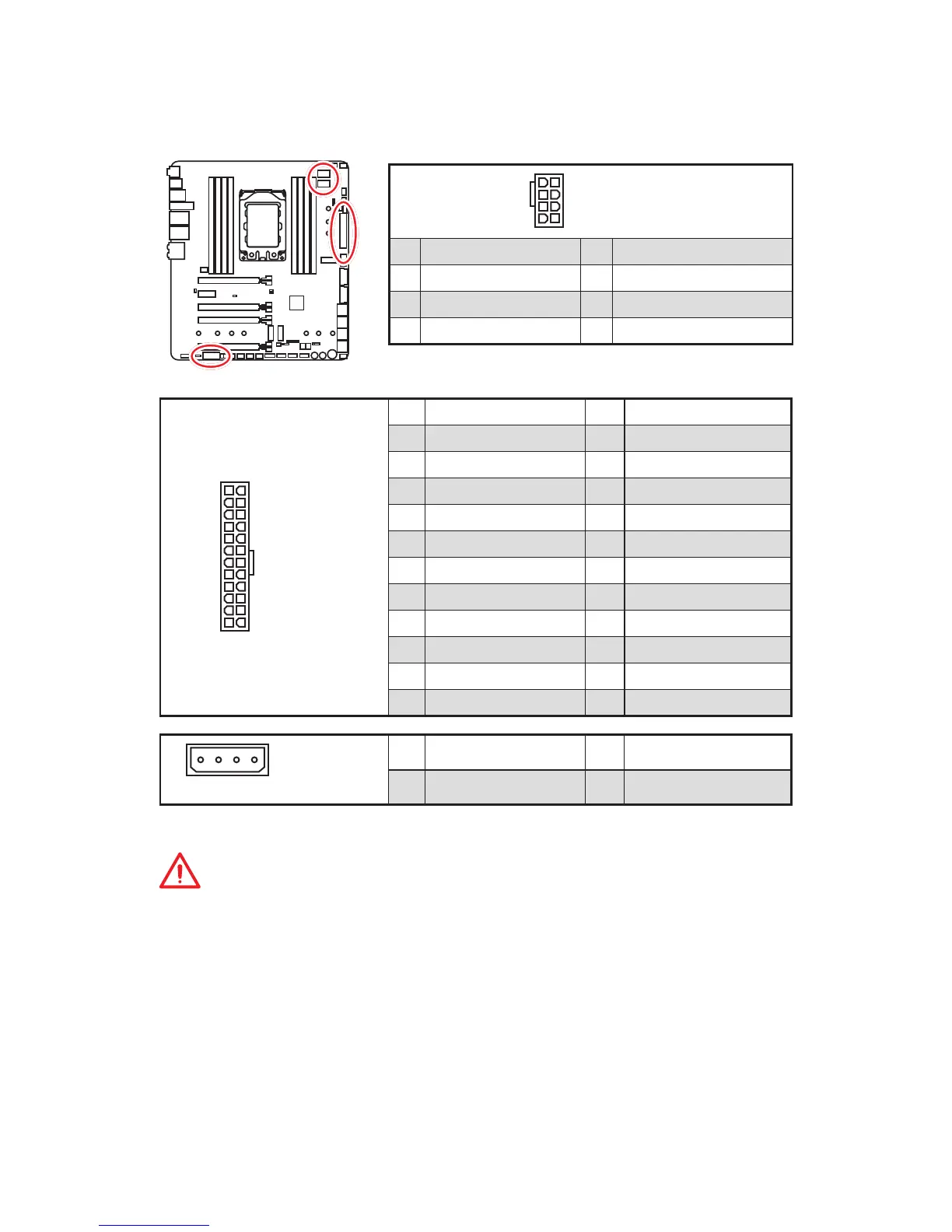

CPU_PWR1~2, ATX_PWR1, PCIE_PWR1: Power Connectors
These connectors allow you to connect an ATX power supply.
PCIE_PWR1
1
1 +12V 3 Ground
2 Ground 4 +5V
