Overview of Components

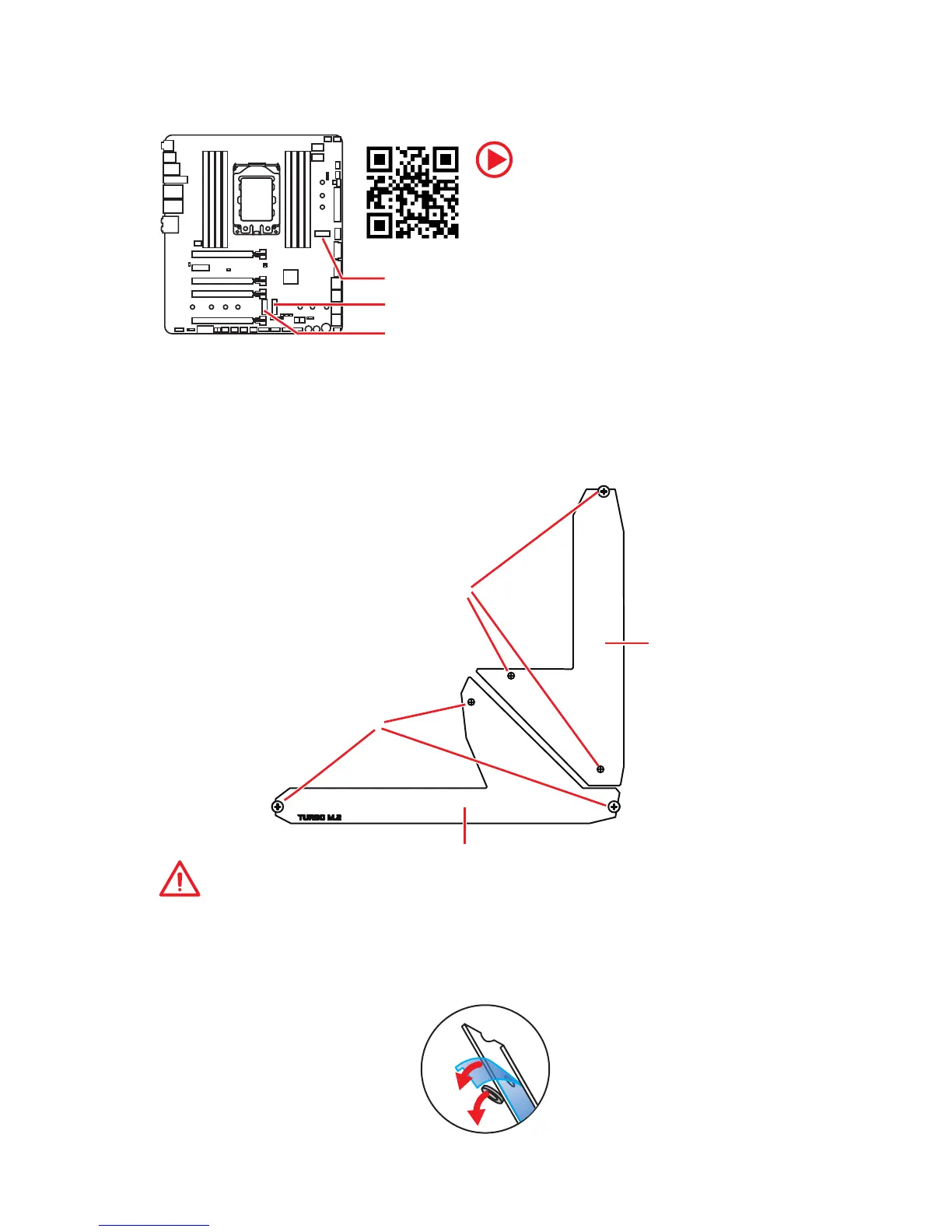

M2_1~3: M.2 Slots (Key M)
M2_3 (Die 0)
M2_1 (Die 1)
M2_2 (Die 1)
Video Demonstration
Watch the video to learn how to Install M.2
device.
http://youtu.be/JCTFABytrYA
M.2 SHIELD FROZR1 & M.2 SHIELD FROZR2
We provide the M.2 SHIELD FROZRs on the M.2 slots to help dissipate the heat away
from the M.2 devices. Before installing M.2 devices, please remove the M.2 SHIELD
FROZR 1 and M.2 SHIELD FROZR 2 by loosening the heatsink screws first. After
installing all necessary M.2 devices, reinstall the M.2 SHIELD FROZR 1 and M.2
SHIELD FROZR 2 by tightening the heatsink screws.
M.2 SHIELD FROZR 2
M.2 SHIELD FROZR 1
heatsink screws
heatsink screws
Important
y
If you want to use the mounting screw hole under the M.2 SHIELD FROZR 2, please
remove the M.2 SHIELD FROZR 2 first.
y
Before reinstalling M.2 SHIELD FROZRs, remember to remove the protective films
and the round rubbers from the thermal pad on the M.2 SHIELD FROZRs for M.2
devices to get heat dispersion.
* For 2990WX processor, M2_1 and M2_2
slots are controlled by Die1, and M2_3 is
controlled by Die0.
