Overview of Components

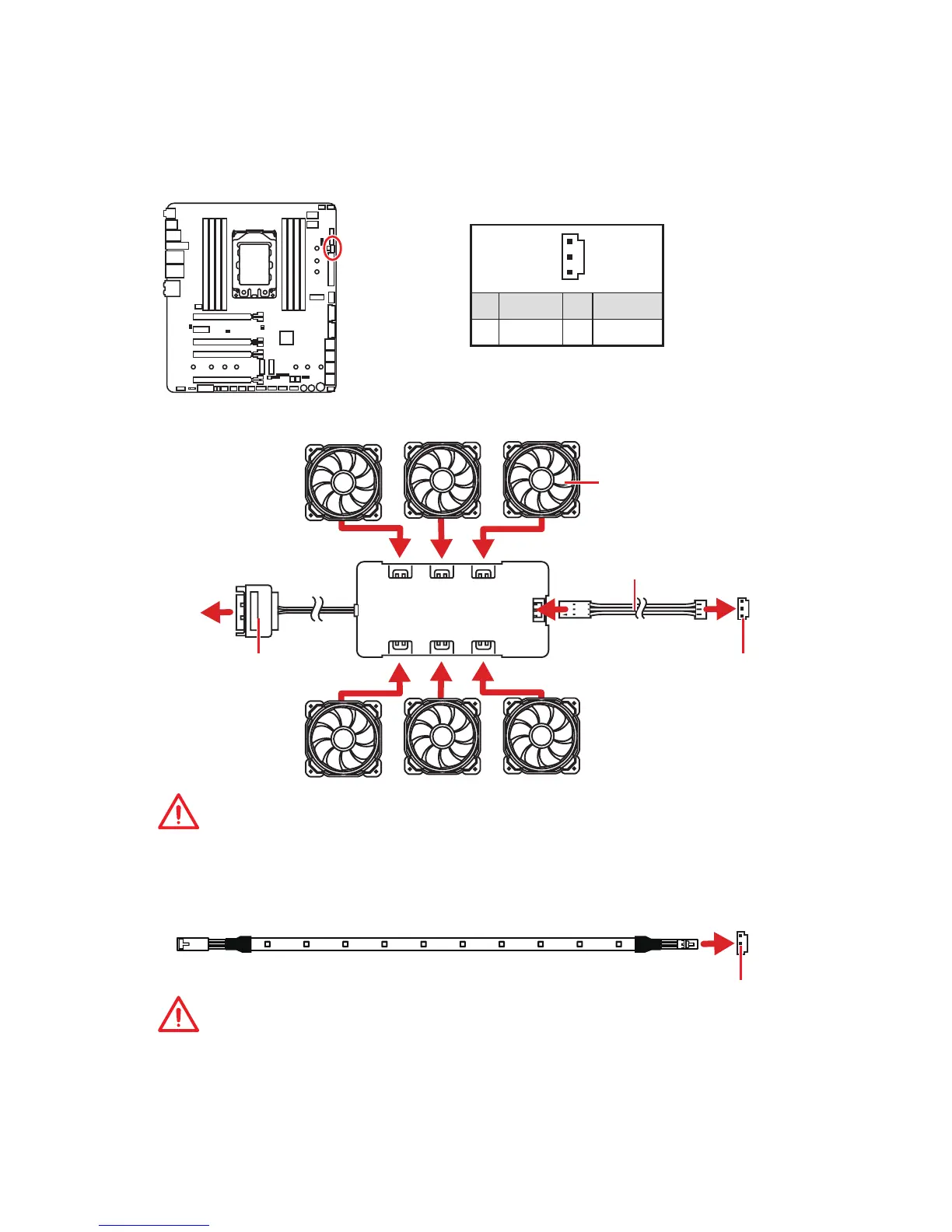

JCORSAIR1: CORSAIR Connector
The JCORSAIR1 connector allows you to connect the CORSAIR Individually
Addressable Lighting PRO RGB LED strips 5V or CORSAIR RGB fans with the CORSAIR
fan hub. Once all items are connected properly, you can control the CORSAIR RGB LED
strips and fans with MSI's software.
Important
y Quantity of RGB Fans or Lighting PRO RGB LED strips supported may differ between
models. Please refer to the motherboard specification.
y CORSAIR RGB Fan and CORSAIR Lighting PRO RGB LED strip can’t be used at the
same time.
1
1 +5V 2 Data
3 GND
JCORSAIR1 connectorSATA power
CORSAIR RGB LED Extension Cable
1
6
2
5
3
4
CORSAIR fan hub
CORSAIR RGB Fan Connection
JCORSAIR1 connector
CORSAIR Lighting PRO RGB LED Strip Connection
CORSAIR RGB fan
Important
Fans must start at 1 and continue in series. 1 > 2 > 3 > 4 > 5 > 6. Any fan not connected
in series will break communication and the RGB LED lighting function will not work.
